RS PROSMD Non-Resettable Surface Mount Fuse 15A, 24V

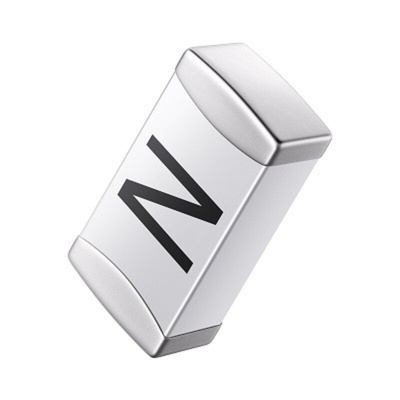

RS PRO SMD LTCC Ceramic Fast Acting Fuse (1206)

A ceramic fast acting SMD fuse (fast blow fuse) intended to protect against short circuits, power surges and mismatched loads to avoid permanent damage to sensitive electronics and electrical systems.
Fast acting fuses are the most common and effective way to protect electronic equipment reacting quicker than other types of fuses and reducing the damage from heat, electrical and magnetic damage from power surges.
A lightweight and surface mount (SMD) 1206 fuse designed for direct attachment to the circuit board saving weight and valuable space.
Commonly used in wireless chargers the SMD fast acting fuse is suitable for a wide range of applications, including:

Storage system power
Colling fan systems
Battery management systems (battery packs)
Server power

Features and Benefits

• LTCC (Low Temperature Co-Fired Ceramic)


• High degree of inrush current capability


• Precise melting time


• Surface mount fuse


• Breaking capacity of 150 A @ 24 V dc


• Operating temperature range of -55°C to +125°C


• Dimensions of 3.1 x 1.6 x 0.9 mm

Standards and Approvals: AEC-Q200, RoHS/ REACH compliant
