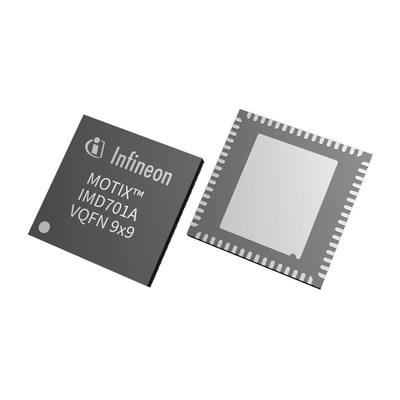

The Infineon MOTIX IMD70xA is a controller specifically designed for 3 phase BLDC or PMSM drives applications. IMD70xA integrates a fully programmable XMC1404 ARM Cortex-M0 microcontroller from Infineon XMC1400 family with 6EDL7141, a 60V three phase smart gate driver with integrated power supply. Both devices integrated allow an ultra-compact design for drives applications up to 60V including not only the microcontroller and a flexible 3 phase gate driver, but also the complete power supply required in the system (synchronous buck converter and LDO), 3 current sense amplifiers, protections and a remarkable set of configurations to adjust to specific needs.
Easy brake mode with programmable braking response
Over-Current Protection (OCP) on current sense amplifiers (programmable)
Over-Current Protection (OCP) for buck converter and DVDD linear regulator (programmable)
Under-Voltage Lockouts (UVLO) for all internal/external supplies
Over-Voltage Fault (OVLO) reporting for buck converter and DVDD linear regulator
Over-Temperature warning and shutdown (OTW, OTS) in gate driver and microcontroller
Техническая спецификация
