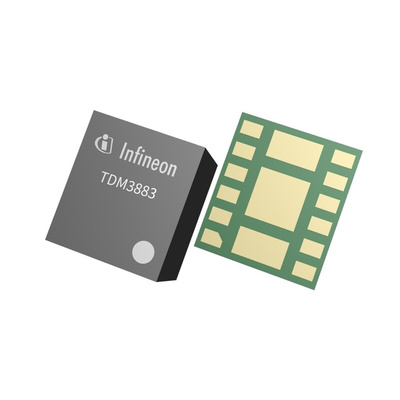

Infineon TDM3883XUMA1, 3 DC-DC, Voltage Regulator 3A, 0.5 → 5 V

The Infineon TDM3883 3A Point of Load Module is an easy-to-use, fully integrated and highly efficient dc-dc module. The module’s PWM controller, MOSFETs and inductor make TDM3883 a space-efficient solution, providing accurate power delivery. The TDM3883 employs an enhanced stability engine that makes it stable with ceramic capacitors without compensation. It also features important protection functions, such as Pre-Bias startup, internal Soft-start, hiccup over-current protection and thermal shutdown to give required system level security in the event of fault conditions.

Micro sized 2.7 mm x 3.1 mm x 2.3 mm
Single input voltage range (4.5 V to 14 V)
800 kHz switching frequency
10 μA supply current at shutdown
Forced continuous conduction mode option
Thermally compensated internal over-current protection
Lead-free, halogen-free and RoHS6 compliant

Datasheet - TDM3883XUMA1
