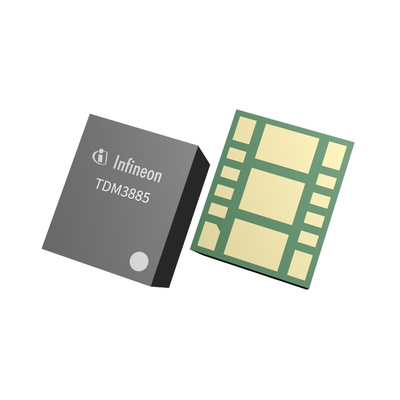

Infineon TDM3885XUMA1, 3 DC-DC, Voltage Regulator 4A, 0.5 → 5 V

The Infineon TDM3885 4A Point of Load Module is an easy-to-use, fully integrated and highly efficient DC/DC module. The module’s PWM controller, MOSFETs and inductor make TDM3885 a space-efficient solution, providing accurate power delivery. The TDM3885 employs an enhanced stability engine that makes it stable with ceramic capacitors without compensation. It also features important protection functions, such as Pre-Bias startup, internal Soft-start, hiccup over-current protection and thermal shutdown to give required system level security in the event of fault conditions.

Micro sized 3.1mm x 3.8mm x 2.3mm
Single input voltage range (4.7V to 14V)
600 kHz Switching frequency
10uA Supply current at shutdown
Forced continuous conduction mode option
Thermally compensated internal over-current protection
Precision reference voltage (0.5V+/-1.0%)
Lead-free, halogen-free and RoHS6 compliant
