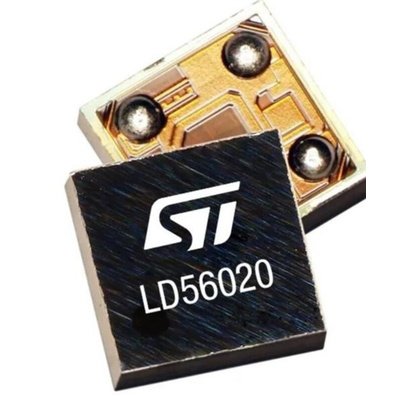

STMicroelectronics LD56020J180R, 1 Low Noise LDO, Voltage Regulator 200mA, 1.8 V

The STMicroelectronics Low input voltage 200 mA ultra low dropout linear regulator is a high accuracy voltage regulator which provides 0.2 A of current. It is available in CSP 0.65 x 0.65 mm² package, SOT23-5L, allowing the maximum space saving. The device is stabilized with a small ceramic capacitor on input and output. The ultra-low drop, low quiescent current and short-circuit current foldback make the LD56020 suitable for low power battery-operated applications.
An enable logic control function puts the LD56020 in shutdown mode allowing a total current consumption lower than 0.1 μA. Thermal protection is also included.

Input voltage from 1.1 V to 5.5 V
Ultra-low dropout voltage (190 mV max. at 200 mA load)
Low ground current (18 μA typ. at no load)
Output voltage tolerance is ± 2 % over temperature, ± 1% at 25 °C
200 mA guaranteed output current
Ultra-low output noise is 8.8 μVRMS (10 Hz to 100 kHz)
50 mV output voltage steps (available on request) from 0.6 V to 4.0 V
Logic-controlled electronic shutdown
Thermal shutdown
Output active discharge function
Packages: Flip-chip4 0.65 x 0.65 mm² and SOT23-5L

Datasheet - LD56020J180R
