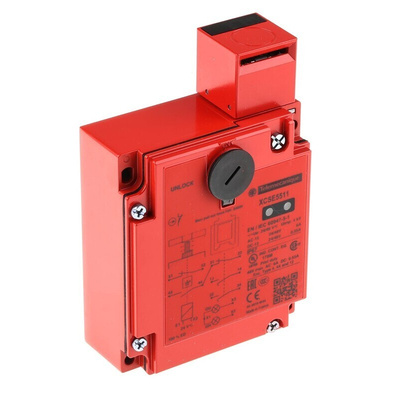

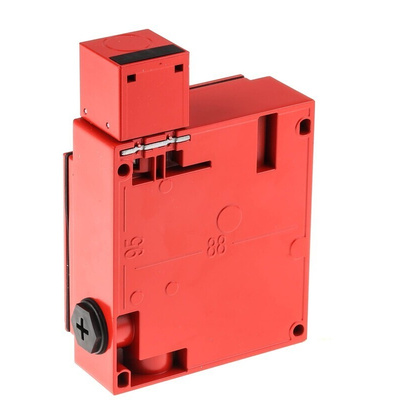

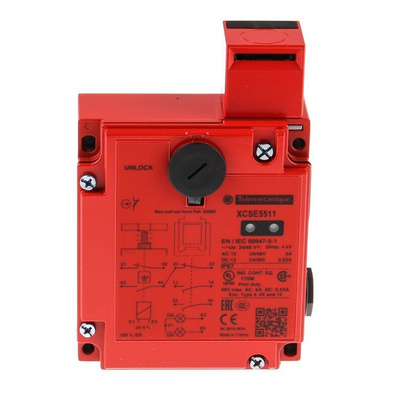

XCSE5511, Telemecanique Sensors XCS-E Series Solenoid Interlock Switch, Power to Lock, 24V ac/dc, 2NO/1NC, Actuator Included

Telemecanique Sensors XCSE Solenoid Interlock Switch.

From Telemecanique Sensors this is the XCSE series of safety solenoid interlock switches providing you with the solution when running machinery and a guard or door stays closed. Interlock switches protect machine operators by stopping the equipment when the door or guard opens by withdrawing the actuator attached from the switch head. The XCSE solenoid interlock switch is ideal for use with heavy duty industrial machines with a low rundown time.

Series Features.

Key operated lock to allow authorised override of solenoid (key supplied)
2 LED indicators (orange/guard open, green/guard closed, key in locked position)
Heavy duty metal compact style to IP67
Turret heads can be rotated through 360° in 90 steps
8 actuator entries and 1 tapped entry
Contact rating 24 Vac/6 A; 110 Vac/3 A; 230 Vac/2 A; 24 Vdc/0.5 A for 1000000 operations
20N minimum operating force for positive opening
Productivity is increased due to the third contact dedicated to diagnostics

Note

Actuators must be purchased separately, see Accessories table.

Standards

Conforms to EN1088, EN60204

Features and Benefits XCSE5511Telemecanique XCS Safety Switch.

• XCSE Safety switch.


• XCS Range of safety switches.


• Rectangular design.


• Zamak head and body material.


• Key operated turret head.


• Contacts 1 NC + 2 NO (type).


• Solenoid Contacts 1 NC + 1 NO (slow break – simultaneous).


• 2 Cable entries tapped for Pg 13.5.


• Cable outer diameter 9 – 12 mm.


• 3 Poles.


• Locking With interlocking, locking by solenoid.


• Terminal clamping.


• (Us) Rated supply voltage 24 V.


• 2 x LED (green or orange) guard open / guard closed and locked.


• Circuit voltage 24 - 48 V.


• NC contact positive opening.


• AC/DC supply voltage.


• Mechanical life 1000000 cycles.


• Weight 1.14 Kg.


• Operating temperature is between -25°C and 40°C

Safety Level.

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ ISO 13849-1. Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1. Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508

Certification.

• UL, CSA.

Standards.

• EN/ISO 12100, UL 50,8 EN/IEC 60204-1, CSA C22.2 No 14, EN 1088/ISO 14119, EN/IEC 60947-5-1.
