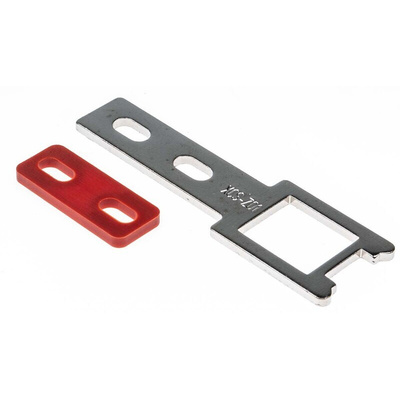

XCSZ01, Telemecanique Sensors Actuator for Use with XCSA Safety Switch, XCSB Safety Switch, XCSE Safety Switch

Telemecanique Sensors Actuator

The Telemecanique Interlock switch has 3 positive opening contacts as standard. It is designed to protect personnel by ensuring doors, gates and guards are closed before a process can start-up. It minimizes potential accident by removing the actuating key from the switch and sending a stop signal to the safety circuit when the guard or gate is open. It is simple to install and configure. The XCS safety interlocks feature metal or plastic bodies and can be used with an assortment of actuating keys to make the switch suitable for a variety of safety applications that are compliant with both domestic and international standards.
Note:
Actuators must be purchased separately, see accessories table

Features and Benefits

Metal enclosures for rugged and demanding applications
Small enclosure styles for mounting in tight spaces
Locking devices keep personnel out of machine when hazards are present
A key operated lock enables positive locking of the guard
Optional version with orange LED to indicate guard open/closed
heavy-duty metal DIN style
Turret heads can be rotated through 360° in 90 steps
8 actuator entries and 1 tapped entry
20N minimum operating force for positive opening

Applications

Food and beverage industry
Pharmaceutical industry
Rail and transport industry
Automotive industry
Mining and quarrying industry
Factory automation industry
XCSA safety switch
XCSB safety switch
XCSE safety switch

Certifications

EN1088
EN60204
IP67 rated

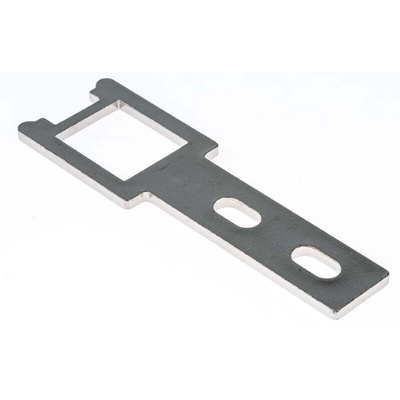

Straight Actuator xcsz01
