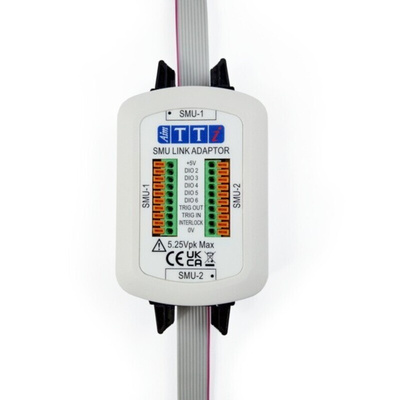

SMU Link, Aim-TTi Trigger link for Use with SMU4000

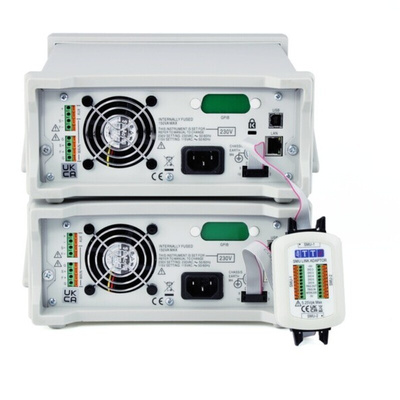

The SMU link provides ability to link two SMU4000 together to perform simultaneously. Creating a full function 2 channel SMU for testing 3 lead components such as BJT’s and FET’s. The IO triggers and handshakes are retained for test system integration. Test Bridge SMU provides combined results for both device I metered and graphical display.

Features and benefits

Simultaneous trigger handshake to achieve 2 channel measurement

Applications

Connect 2 Aim-TTi SMU4000 for testing 3 lead component such as FET's and BJT's

Supplied with:

Connecting cables

What other Source Meters are available in this Aim-TTi range?

SMU4001
SMU4201

Datasheet - SMU LINK
