MS111, Innomaker, Camera Module with 1920 x 1080 pixels Resolution

2526691
Номер производителя: MS111Производитель: Innomaker
Цена за шт.
16065.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

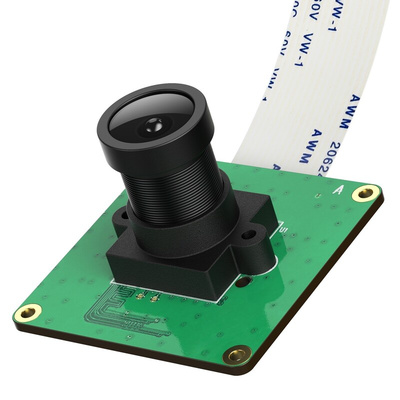

The Innomaker CAM-MIPI327RAW is a low-cost fisheye Lens excellent low illumination and wide dynamic camera module, designed for whole series Raspberry (P4/Pi3B+/PI3A+/PI3/CM3/CM3+). Plug into the CSI-2 Pi camera interface directly. On-board IMX327LQR-C is a diagonal 6.46 mm (Type 1/2.8) CMOS active pixel type solid-state image sensor with a square pixel array and 2.13 M effective pixels. This chip operates with analog 2.9 V, digital 1.2 V, and interface 1.8 V triple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B
primary colour mosaic filters. This chip features an electronic shutter with variable charge integration time.

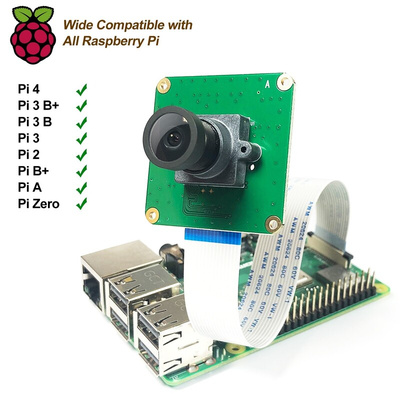

Raspberry Pi Camera CAM-MIPI327RAW is an Industrial Camera Module for Raspberry Pi 4,3B+ 3B, 3A+ CM3+, CM3, Pi zero

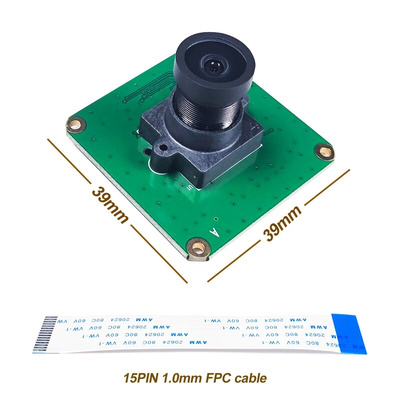

Sensor Type: STARVIS IMX327LQR Colour CMOS Active Pixel type Solid-state Image Sensor with Square Pixel Array 2.13 M Effective Pixels
Low power consumption module

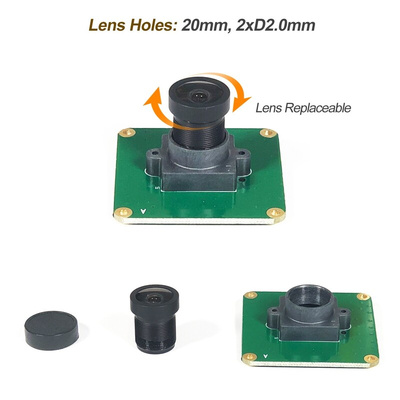

Match a wide angle Lens and focal distance is adjustable
Comes with user manual, test demo and friendly technology support

Техническая спецификация
pdfDatasheet - MS111
Максимальное поддерживаемое разрешение:
1920 x 1080 пикселей
Тип:
Camera Module
