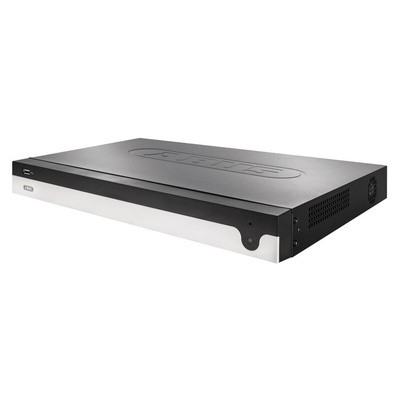

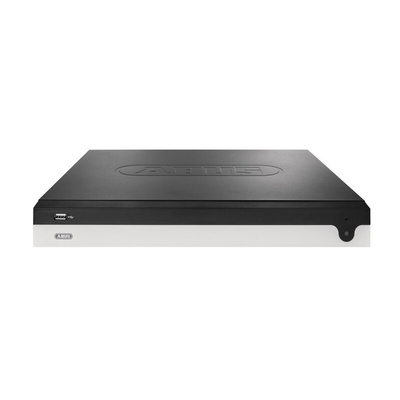

ABUS Security-Center HDCC90002 CCTV Digital Video Recorder1024 x 768 pixels

ABUS 4-channel CCTV Analogue DVR, 4K

The ABUS designed 4-Channel Analogue HD Video Recorder ensures that every recording solution is ready to use straight away – whether it be a retrofitting or a new project set-up with analogue HD technology. Video images can be provided in real-time and for recording as soon as the connection between the camera and recorder is set up using a coaxial or 2-wire connection (accessory: 2-Wire Analogue HD Transmission Set).

Storage space is doubled thanks to data compression

The compression of the incoming image data using H.265 technology uses storage space twice as efficiently. Up to 10 TB hard disk drive capacity can be installed, ensuring sufficient storage capacity is made available for sustained recording and any application.

Very easy and intuitive operation

Various modes of operation are available with the analogue HD recorder. The video data can be evaluated using a local monitor, browser, the intuitive ABUS CMS software or via the ABUS Link Station App for Android/iOS.

Automatic object detection

The recorder reliably distinguishes relevant movements (people, vehicles) from disruptive influences (twigs, light, etc.) - and minimizes the number of unnecessary movement alarms.

Pentaplex support

Supports TVI (max 5 MPx), CVI (max 1080p), AHD, CVBS (PAL / NTSC) signals on all BNC inputs
Support of two additional IP channels up to max. 6 MPx
Compatible with ABUS IP cameras. See compatibility list in the download area.

• Fanless and silent
• Pentaplex support: recording and live display of all channels up to 8 MPx (selected ABUS IP cameras, TVI, CVI, AHD, CVBS)
• Use storage space twice as efficiently: Data compression with H.265
• Ideal for retrofitting of existing systems to a higher resolution
• Long cable lengths up to a maximum of 500 m
• Object recognition (human & vehicle): Motion detection with fully automatic differentiation between people/vehicles and disturbances (branches, light, etc.)
• Easy to operate: can be controlled via local monitor, Browser, app or ABUS CMS software
• Support for max. 2 IP cameras
• Permanent recording: 1x HDD up to 10TB

Scope of delivery:

1x DVR
1x USB wireless mouse
1x Hard drive cable
1x Server cabinet bracket
1x Mounting material
1x Quickstart guide
3x Power cable
1x Power Supply

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4
