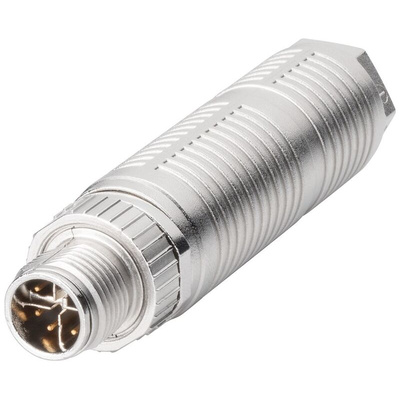

6GK19010DB506AA0, Siemens Plug Ethernet Connector, Cable Mount, Cat6a

Siemens Ethernet Connector, Up to 1000Mbit/s Transfer Rate, 48g Weight - 6GK19010DB506AA0

Looking for a way to create reliable connections in tough environments? Use this Ethernet connector from Siemens with your SCALANCE systems for lightning-quick data transmissions. When paired with an Ethernet FC TP cable, this component achieves speeds of up to 1000Mbits per second for top-level efficiency. It's an IP67-rated unit that's dust-tight and waterproof in 1m of water for up to 30 minutes. This makes it a sure bet for demanding operations in factories, off-shore setups and healthcare settings. A robust metal casing protects the connection, enabling it to perform reliably in temperatures between -40°C and +85°C.

Features & Benefits

• X-coded M12 connector for broad compatibility with standard ports
• Weighs only 48g, so it puts minimal strain on connections
• At just 17.6mm wide, the unit takes up little space on panels and PLCs

Does this Ethernet connector stay in place when equipment shakes or vibrates?

Yes, the integrated coupling nut firmly secures the unit to prevent accidental disconnections and service delays.

Is it easy to insert and remove this Ethernet connector?

Yes, it features FastConnect technology, so you can plug it in and remove it in a flash. This means you can even use it for field setups.

Datasheet - 6GK19010DB506AA0
