DPI610E-HC-22A-UO-BO, Druck DPI610E 0bar to 700 Bar A Pressure Calibrator

Druck DPI610E PORTABLE PRESSURE CALIBRATOR HYD 700BARA

Product Details

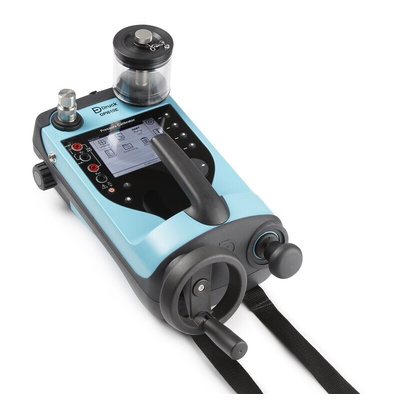

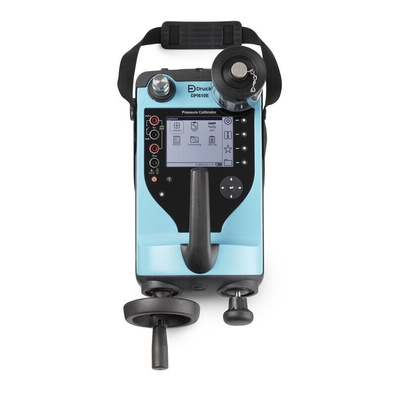

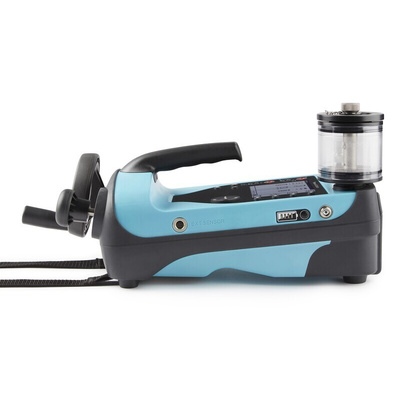

The Druck DPI610E is the latest portable Pressure Calibrator from the Druck business. Building on a heritage of 50 years as the leading global pressure equipment manufacturer. Boasting effortless pressure measurement and generation, the DPI610E is the ideal solution to your commercial or hazardous area pressure measurement application.

Features and benefits

Vacuum to 35 bar/500 psi/3.5 MPa pneumatic pressures with inbuilt barometer for accurate pseudo pressure measurements
Up to 1000 bar/15000 psi/100 MPa hydraulic pressures
A fast response touchscreen display with a high contrast, backlit display
Expanded pressure ranges up to 35 bar (pneumatic) and 1000 bar (hydraulic)
Innovative Hydraulic reservoir design removing contamination concerns
USB port for transferring data or performing firmware upgrades
Enhanced battery life with up to 90 hours continual use from a single, 2 hour charge
Easy to use interface with touchscreen and/or button navigation
Basic HART functionality included
Internal barometer with barometer port for easy calibration
Quick fit process connectors (hand tighten up to 1000 bar)
Plug and play external pressure and temperature sensor options
Available in Commercial and Hazardous versions

Druck's DPI610E builds on the proven DPI601, 603, 605, 610 and 615 units, combining the latest developments in pressure measurement with the iconic and best loved features of its predecessors, including the iconic handle, advanced accuracy, ease of use functionality and quality you would expect from Druck. With an internal barometer and a barometer port for easy calibration, the DPI610E also has enhanced battery life, with up to 90 hours continued use from one 2 hour charge and a battery health indicator for visibility. The enhanced range (up to 35bar pneumatic, 1000bar hydraulic) and HART standard configurator on all unit demonstrates the innovation from the legacy 610 unit.

Applications

Industries include:
Aerospace
Automotive
Electronic & Semiconductor
Food & Beverage
Marine
Meteorology
Oil & Gas
Other industries
Pharmaceutical
Power & Energy
Water & Wastewater

Supplied with/Kit contains:

Unit Supplied with: Dirt/moisture trap as standard, reservoir with all hydraulic units, chargers with all DPI610E units. Please note Blue units are Safe area only whilst Yellow units are Hazardous.

What other Pressure Calibrators are available in this Druck range?

610, 611, 612, 615 and GENII will remain available.

Note

Why choose Druck?
What began in 1972 as a small business in Leicester, UK, Druck has grown into a global pressure-measurement business recognised as a world leader, delivering high quality piezo-resistive pressure sensors and test and calibration instruments to a wide range of applications for customers across the globe.
Druck is one of the only organisations to control the whole manufacturing process from silicon to final product. All products are high-quality, developed from the in-house (UK), raw processing of silicon to delivering the final product.
With Druck, you can be sure of quality, accuracy and reliability. We are Druck. We deliver peace of mind.

Datasheet - DPI610E Series
