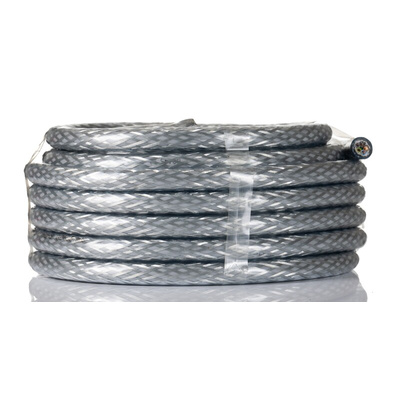

RS PRO Control Cable, 5 Cores, 2.5 mm², SY, Screened, 10m, Clear PVC Sheath

RS PRO 10m Control Cable (SY)

A PVC insulated control cable designed for use as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines as well as conveyors and for computer units.
This professional 5 core cable features unterminated annealed copper conductors, PVC insulation, sheathing and bedding and Galvanised Steel Wire Braiding (GSWB) for protection from Electro Magnetic Interference (EMI). The result is a high quality control cable that is safe, flexible and reliable.
Control cable is commonly used in a wide number of industries including building and construction, rail and transport infrastructures, transmission and automation and process control.
Suitable for outdoor applications with the relevant protection however it is best suited for indoor use in dry and moist conditions.

Features and Benefits

• 10m in length


• 5 x 2.5mm² unterminated Copper conductors (BS EN 60228)


• 20 A Current rating


• PVC Insulation (BS EN 50363-3)


• PVC Bedding (BS EN 50363-4-1


• Galvanised Steel Wire Braid (GSWB)


• PVC Sheath (BS EN 50363-4-1)


• Operating temperature range of -15 to 70°C

Standards and approvals: BS EN 50252-2-11, ROHS

Why RS PRO?

Looking to reduce costs but keep the same quality?
With a choice of over 65,000 products – all of which are rigorously tested against demanding industry standards before they are given the RS PRO seal of approval.
Trusted by engineers the world over, we want you to be confident that you’re receiving the exceptional quality, reliability and the best value for money.

RS PRO Datasheet
