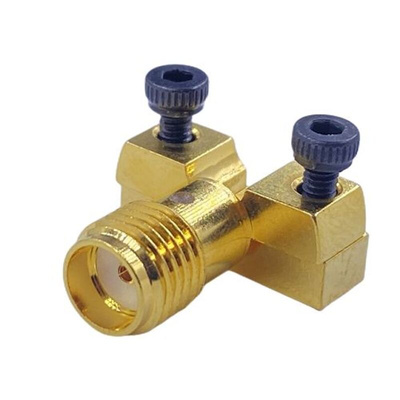

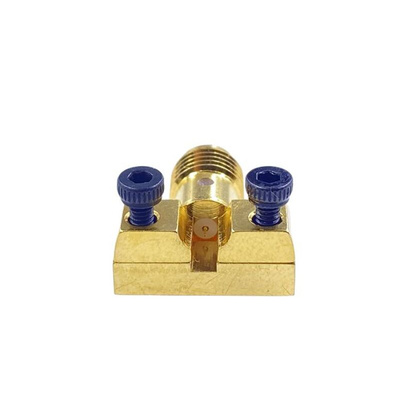

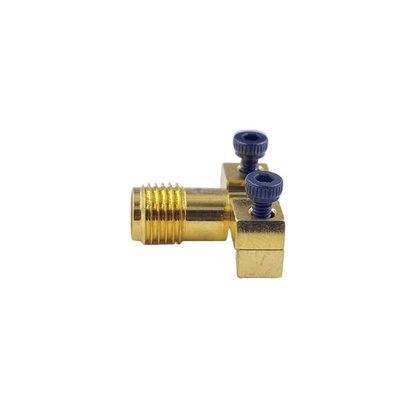

RS PRO, jack PCB Mount SMA Connector, 50Ω, Welding Termination, Straight Body

RS PRO SMA Connector – PCB Mount Jack

Get the perfect connection with RS PRO SMA Connectors. This female end launch connector allows you to install cables in corners and tight areas with ease, while the gold and copper contacts provide strong conductive cores that guarantee a reliable connection. Key features include a screw coupling mechanism ensuring a secure connection and high performance. We recommend using this product with centre pin welding for increased current strength, all while enjoying electrical shielding and low electromagnetic interference. Get ready for fast installations where you need them.

Where Would You Find These Connectors?

During application, they are used with semi-rigid and flexible coaxial cables in multiple applications such as Telecommunications and Satellite Communications. Once mated with a coaxial cable, RF signals are transmitted, typical applications include telephone antennas and Wi-Fi networks. Installation is quick and easy and can be carried out by professionals or DIY enthusiasts.

Features and Benefits

• Female End Launch Connector


• Screw coupling mechanism


• Main body gold plating can enhance wear resistance and prolong service life


• SMA (Sub-Miniature version A) coaxial connector type


• Contact: Copper


• Contact plating: Gold


• PCB Mounting

Specification

• Female gender


• Snap-on mating type


• PCB applications


• Impedance of 50 Ω


• Operating frequency of 18 GHz


• Solder termination method


• Voltage rating of 335 V

Applications

• Wireless communications


• Antenna connections


• Test and measurement equipment


• Medical devices, and GPS systems
