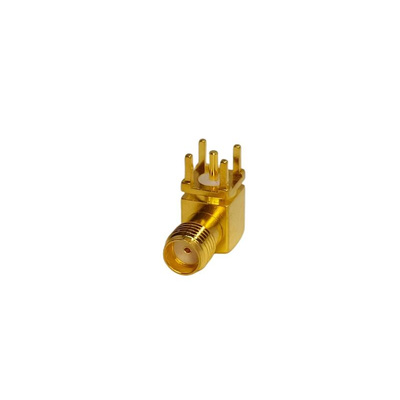

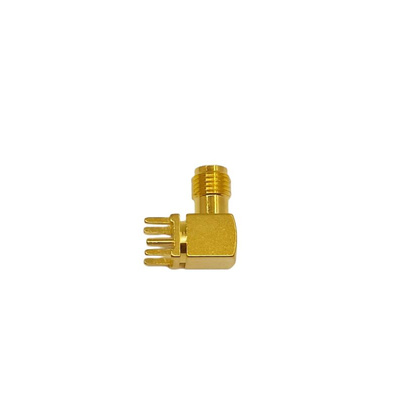

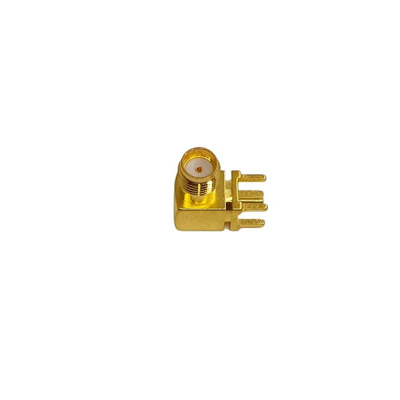

RS PRO, jack Panel Mount SMA Connector, 50Ω, Solder Termination, Right Angle Body

RS PRO 50 Ω Right Angle PCB Mounting, SMA Connector, Jack

Get the perfect connection in tight spaces with RS PRO SMA Connectors! The right-angle body orientation allows you to install cables in corners and tight areas with ease, while the gold and copper contacts provide strong conductive cores that guarantee a reliable connection. Solder to melt and seal the connector for increased current strength, all while enjoying electrical shielding and low electromagnetic interference. Get ready for fast installations where you need them.

Where Would You Find These Connectors?

During application, they are used with semi-rigid and flexible coaxial cables in multiple applications such as Telecommunications and Satellite Communications. Once mated with a coaxial cable, RF signals are transmitted, typical applications include telephone antennas and Wi-Fi networks. Installation is quick and easy and can be carried out by professionals or DIY enthusiasts.

Features and Benefits

• Right angle body orientation


• Gold body plating


• No bulkhead


• SMA (Sub-Miniature version A) coaxial connector type


• Contact 1 is made of beryllium copper


• Gold contact plating

Specification

• Female gender


• Snap-on mating type


• PCB mounting type


• Impedance of 50 Ω


• Operating frequency of 6 GHz


• Solder termination method


• Voltage rating of 335 V

Applications

• Wireless communications


• Antenna connections


• Test and measurement equipment


• Medical devices, and GPS systems
