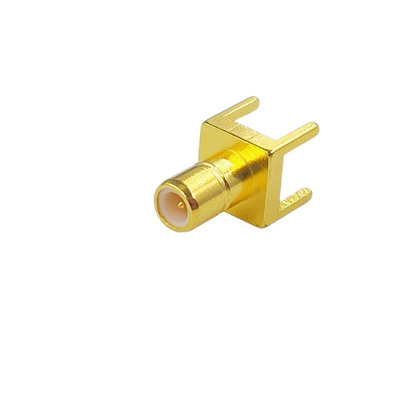

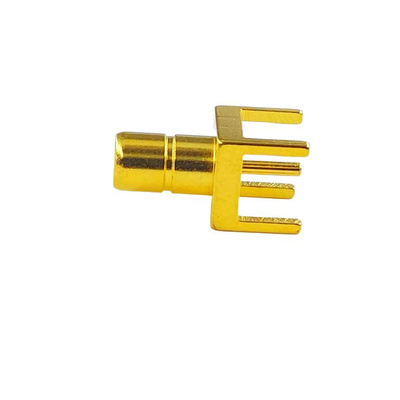

RS PRO, Plug PCB SMB Connector, 50Ω, Solder Termination, Straight Body

2537046
Производитель: RS PRO
Цена за шт.
756.60 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO Male SMB Connector

Get connected with this RS PRO male SMB connector designed to receive and mate with a female SMB connector. It has a socket-like structure with an inner receptacle that allows for the insertion of the female connector. The outer shell of the male SMB connector has a Snap-On mechanism that securely fastens the connector in place.
SMB refers to a specific type of coaxial connector that follows the SMB (Sub-miniature version B) standard. The SMB connector is commonly used for RF (Radio Frequency) and microwave signal transmission in various electronic devices and systems.

Why Would You Choose This Connector?

With an operating frequency of 4 GHz and a characteristic impedance of 50 Ω, this connector is well-suited for coaxial transmission networks. You'll also find that the gold body plating and contact plating protect against vibration and wear from repeated insertions.

Features and Benefits

  • Straight body male SMB connector

  • RG174 A/U cable connector

  • Copper contact material

  • Hard-wearing gold body plating and contact plating

  • PCB mount

  • Solder termination method

  • Operating frequency of 4 GHz

  • Characteristic impedance of 50Ω

  • Working Voltage: 335 V

Applications

  • Telecommunications

  • Wireless Networks

  • Microwave systems

  • Automotive, and consumer electronics

  • RF modules, antennas, cable assemblies, test equipment, and other devices requiring RF signal transmission

RS PRO Coaxial Connectors

RS PRO offer a wide selection of coaxial connectors to suit your application. Browse our offer using the improved filters to find your ideal solution.

Техническая спецификация
pdfRS PRO Datasheet
pdfRS PRO Datasheet
Импеданс:
50Ом
Концевая заделка:
Припой
Материал контактов:
Фосфорная медь
Ориентация корпуса:
Прямой
Покрытие контактов:
Золото
Покрытие корпуса:
Золото
Полярность:
Normal
Рабочая частота:
4ГГц
Род:
Male
Тип коаксиального разъема:
SMB Connector
Тип монтажа:
Печатная плата
