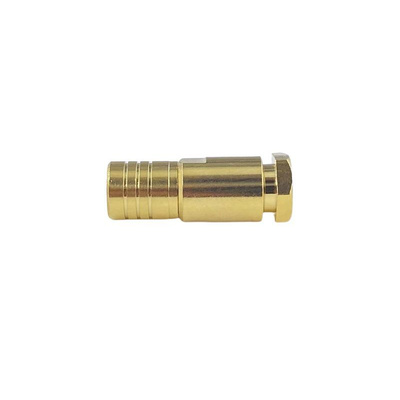

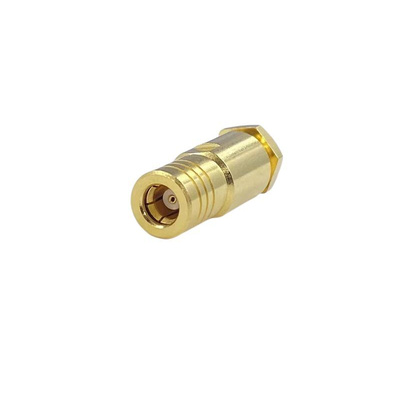

RS PRO, jack Cable Mount SMB Connector, 50Ω, Clamp Termination, Straight Body

RS PRO Female SMB Connector

Get connected with this RS PRO female SMB connector designed to receive and mate with a male SMB connector. It has a socket-like structure with an inner receptacle that allows for the insertion of the male connector's outer pin. The outer shell of the female SMB connector has a Snap-On mechanism that securely fastens the male connector in place when mated. SMB refers to a specific type of coaxial connector that follows the SMB (Sub-miniature version B) standard. The SMB connector is commonly used for RF (Radio Frequency) and microwave signal transmission in various electronic devices and systems.

Why Would You Choose This Connector?

With an operating frequency of 4 GHz and a characteristic impedance of 50 Ω, this connector is well-suited for coaxial transmission networks. You'll also find that the gold body plating and contact plating protect against vibration and wear from repeated insertions.

Features and Benefits

• Straight body female SMB connector


• RG174/U cable connector


• Copper contact material


• Hard-wearing gold body plating and contact plating


• Cable mounting


• Clamp termination method


• Operating frequency of 4 GHz


• Characteristic impedance of 50Ω


• Normal polarity

Applications

• Telecommunications


• Wireless Networks


• Instrumentation


• Aerospace


• Automotive, and consumer electronics


• RF modules, antennas, cable assemblies, test equipment, and other devices requiring RF signal transmission
