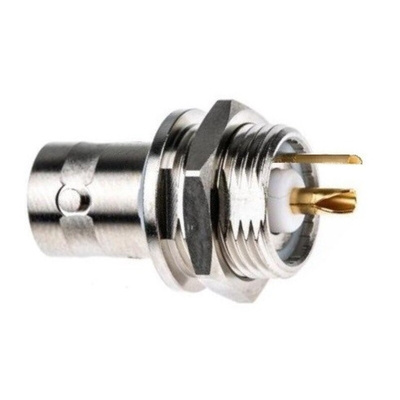

RS PRO, jack Panel Mount BNC Connector, 50Ω, Solder Termination, Straight Body

RS PRO Female 50 Ω BNC Connector - Panel Mount

To get the best RF signal transfer, you need a good quality coaxial connector. We are proud to introduce this sleek looking BNC connector from RS PRO made from high-quality materials that promises the very best in RF signalling.

Why Would You Choose This Coaxial Connector?

This RS PRO BNC connector is a high-quality component designed for panel mount applications and mates with a male BNC. The coaxial connector features a rugged nickel-plated body, brass gold-plated contact for excellent electrical conductivity and when it comes to mating, there’s a convenient bayonet coupling system that ensures quick connect and disengagement without risk of damage to coaxial cable. RF signals will continue to be strong over long service life.

Features and Benefits

• Female BNC Connector


• Panel Mount


• Body Plating: Nickel


• Contact Material: Brass


• Contact Plating: Gold


• Solder Termination

Specification

• Temperature Range -25°C ∼+85°C


• Impedance 50 Ω


• Frequency Range 0∼4GHz


• Voltage Rating 250 V


• VSWR 1.5


• Working Life 500Cycles

Applications

• Antenna connection


• Cable Modems


• Telecom


• Medical Equipment

RS PRO Datasheet
