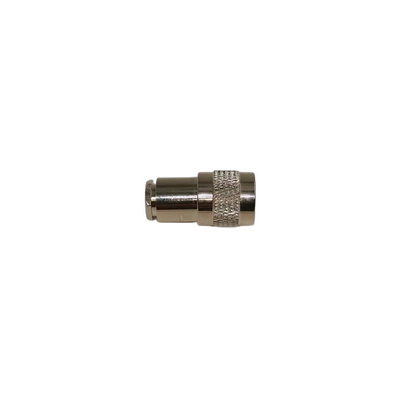

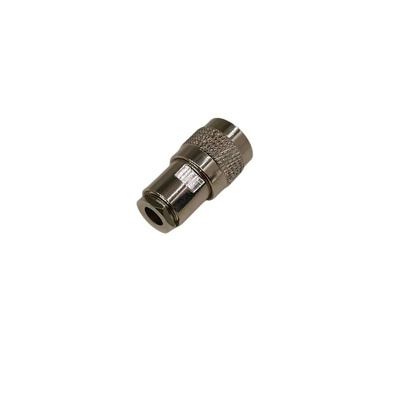

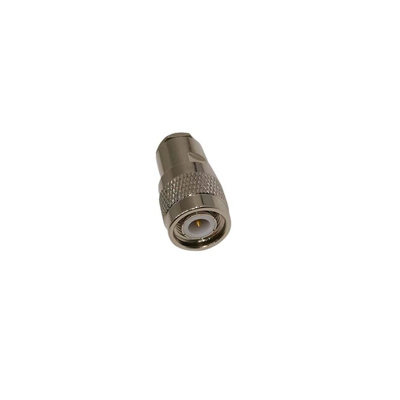

RS PRO, Plug Cable Mount TNC Connector, 50Ω, Clamp Termination, Straight Body

RS PRO TNC Coaxial Connector

The RS PRO coaxial connectors keep on improving, here we are proud to introduce this TNC coaxial connector designed for use with RG58/U cables. This straight cable mount connector plug includes a nickel-plated brass body, gold-plated centre contact, rubber gasket and clamp termination. It also boasts an impressive operating temperature range from -65° C to +165° C which makes this cable mount plug especially suitable for harsh conditions.

How Do They Work?

Our TNC connectors feature a threaded interface, which provides a secure and reliable connection compared to the bayonet-style coupling mechanism. The male connector has a centre pin that extends outwards, during application the female connector has a receptacle with a centre hole to receive the pin. The connectors are screwed together to establish a tight union.

Features and Benefits

• TNC connector is suitable for use with RG58/U cable


• Offers clamp termination


• Nominal impedance of 50 Ω


• Impressive operating range temperature (-65°C up to +165°C)


• Excellent RF communication for up to 6 GHz


• Dimensions 25.2 x 15 mm

Applications

The TNC series of Connectors goes through exploration for radio and wired applications and has their place in:

• Antennas


• Industrial


• Wireless


• Broadband


• Military
