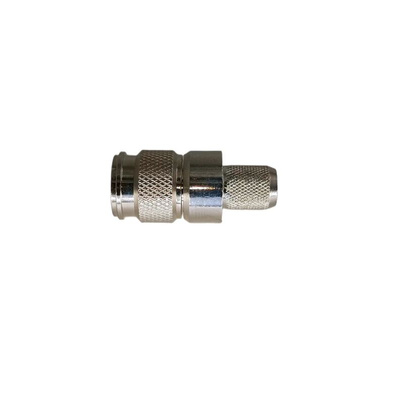

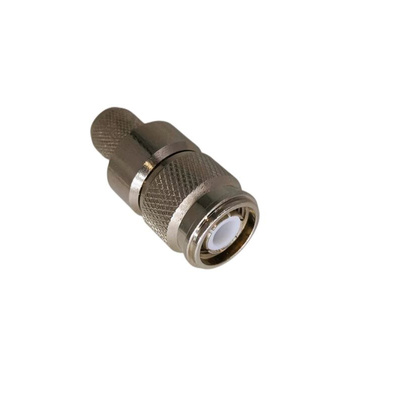

RS PRO, Plug Cable Mount TNC Connector, 50Ω, Crimp Termination, Straight Body

2537067
Производитель: RS PRO
Цена за шт.
4765.80 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO TNC Coaxial Connector – Cable Mount

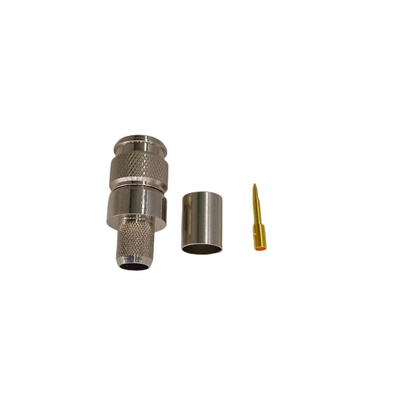

The RS PRO coaxial connectors keep on improving, here we are proud to introduce this TNC coaxial connector designed for use with LMR 400 cables. This straight cable mount connector plug includes a nickel-plated brass body, gold-plated centre contact, rubber gasket and crimp termination. It also boasts an impressive operating temperature range from -45° C to +165° C which makes this cable mount plug especially suitable for harsh conditions.

How Do They Work?

Our TNC connectors feature a threaded interface, which provides a secure and reliable connection compared to the bayonet-style coupling mechanism. The male connector has a centre pin that extends outwards, during application the female connector has a receptacle with a centre hole to receive the pin. The connectors are screwed together to establish a tight union.

Features and Benefits

  • TNC connector is suitable for use with LMR 400 cable

  • Offers crimp termination

  • Nominal impedance of 50 Ω

  • Impressive operating range temperature (-45°C up to +165°C)

  • Excellent RF communication for up to 11GHz

  • Dimensions 35.5 x 16 mm

Applications

The TNC series of Connectors goes through exploration for radio and wired applications and has their place in:

  • Antennas

  • Industrial

  • Wireless

  • Broadband

  • Military

Техническая спецификация
pdfRS PRO Datasheet
pdfRS PRO Datasheet
Импеданс:
50Ом
Концевая заделка:
Crimp
Материал контактов:
Латунь
Ориентация корпуса:
Прямой
Покрытие контактов:
Золото
Покрытие корпуса:
Никель
Рабочая частота:
11ГГц
Род:
Male
Тип коаксиального разъема:
TNC Connector
Тип монтажа:
Кабельное крепление
