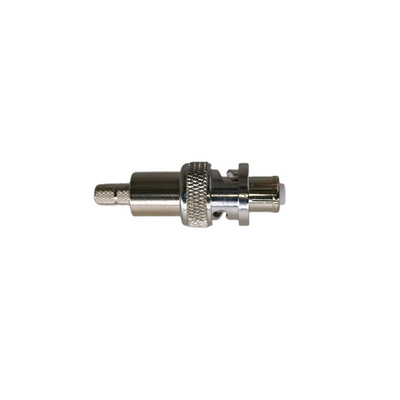

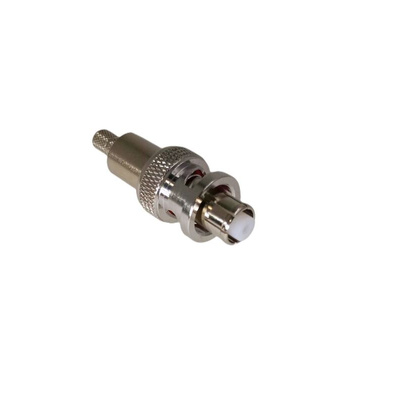

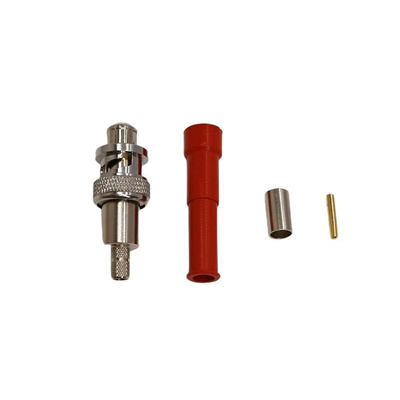

RS PRO, Plug Cable Mount SHV Connector, Crimp Termination, Straight Body

RS PRO SHV Coaxial Connector

Keep your high-voltage connections safe and secure with RS PRO SHV Connectors. Our connectors are designed to provide a reliable and easy connection that will protect your equipment from electrical arcing. The bayonet-style coupling mechanism allows for quick and easy connections, while the insulated construction ensures optimal safety.

Why Would You Choose an SHV Connector?

Overall, SHV connectors are specialised coaxial connectors used in high-voltage applications where safety and reliable electrical connections are crucial.

Feature and Benefits

• Operating frequency is 2GHz


• Nickel-plated body


• Gold-plated contacts


• Ensure maximum efficiency


• Electrical Specifications


• Temperature Range: -85°C to +165°C


• Frequency Range: 1.2GHz


• Voltage Rating: 1000 V(rms) (for RG58)


• Maximum Operating Voltage: 1900 V(rms) (for RG58)


• Working Life 500 Cycles

Applications

• Scientific Research


• Industrial Equipment


• Medical Devices

RS PRO Coaxial Connectors

RS PRO offer a wide selection of coaxial connectors to suit your application. Browse our offer using the improved filters to find your ideal solution.
