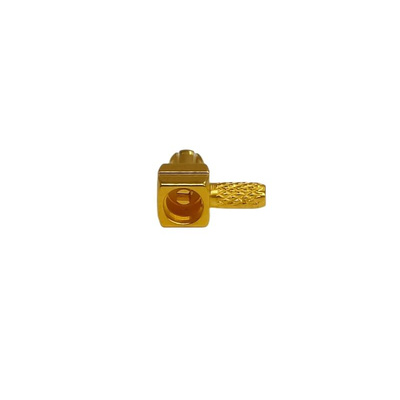

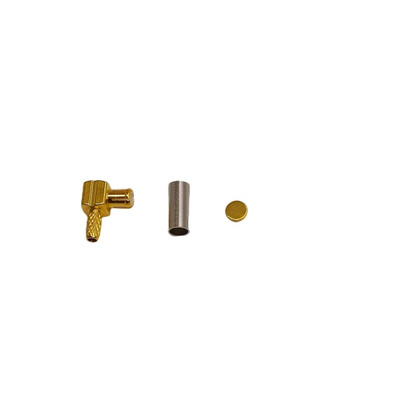

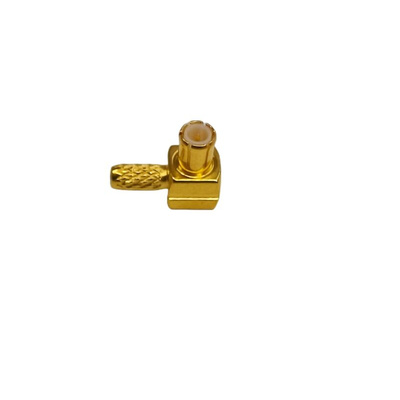

RS PRO, Plug Cable Mount MCX Connector, Crimp Termination, Right Angle Body

RS PRO MCX Connector – Right Angled

Get connected with the RS PRO MCX (Micro Coaxial) connector. This compact RF (radio frequency) connector is widely used in electronic devices that require a small, lightweight, and high-frequency coaxial connection. Overall, the MCX connector provides a reliable and compact solution for high-frequency coaxial connections in a wide range of electronic devices, offering flexibility, convenience, and good electrical performance.

Why Would You Choose This Connector?

The MCX connector plug is suitable for operating frequencies ranging from 0 - 6 GHz. It is designed for 50Ω impedance applications. This right-angled connector plug has crimp termination, include gold plated copper body and gold contacts for superior connectivity.

Features and Benefits

• Compatible with RG174/U type cable


• Snap on mechanism


• Flexibility in PCB layouts by allowing for 360° rotation


• Right Angled


• 50 Ω impedance


• Operating frequency is 6GHz


• Gold-plated body


• Gold-plated contacts ensure maximum efficiency

Applications

• Consumer Electronics


• Mobile Devices


• GPS Receivers


• Wireless Communication Systems, and test equipment

RS PRO Coaxial Connectors

RS PRO offer a wide selection of coaxial connectors to suit your application. Browse our offer using the improved filters to find your ideal solution.
