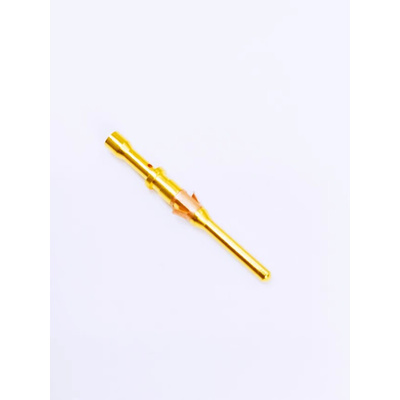

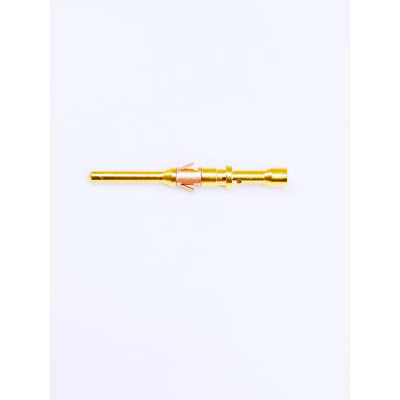

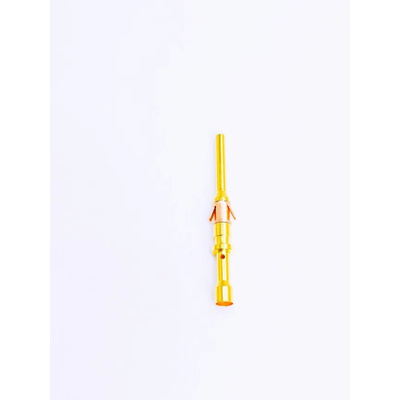

RS PRO Male Crimp Circular Connector Contact, Contact Size 1.6, Wire Size 22 → 20 AWG

RS PRO Male Circular Connector Contacts

Circular connector contacts play a crucial role in enabling electrical connections in various applications. RS PRO is proud to introduce a range of high-quality circular connector contacts, available in male orientation with crimp termination. The gold-plated straight contact is a vital component for reliable signal or power transmission over multiple mating cycles. The individual conductive holder with crimp end is designed to fit into a corresponding mating connector, creating a secure electrical connection.

Features and Benefits

• Gold-plated round connector contact


• Crimp, creating a secure electrical connection


• Excellent electrical connections between the mating connectors


• Gold plating can enhance wear resistance and prolong service life


• Responsible for transmitting signals, power, or both, depending on the specific application

Specification

• Contact size: 1.6


• Wire Size Available: 22 → 20 AWG


• Gender: Male


• Length: 26 mm


• Termination: Crimp


• Temperature Range: -45 °C +100 °C


• Contact Impedance: 3 mΩ


• Rated current: 13A


• Working Life: 500 Cycles

Applications

• Power Connectors


• Signal Transmission


• Industrial, and telecommunications
