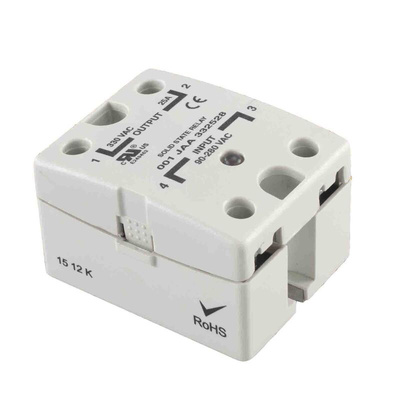

RS PRO Solid State Relay, 40 Amps Load, Panel Mount, Surface Mount, 280 Vrms Load

RS PRO Solid-State Relays - Triac Output

From the trusted brand RS PRO comes a range of solid-state relays designed to provide the very best performance via a Triac output switching element. These bidirectional devices are capable of controlling AC power by switching both halves of the AC waveform. They can switch AC loads, such as heaters, lamps, motors, and other devices that require precise control of power levels.

Why would you choose a Triac Solid-State Relay?

Solid-State Relays are panel mount/surface mount relays, widely used in industrial switching applications such as control of heaters, motors, solenoid, lighting, and microcontroller-based systems. SSR switching is preferred due to high reliability and long life and in electrically harsh environment. Ratings are offered starting from 10 Amps to 40 Amps for 240- and 440-volts applications.

Features and Benefits

• Single Phase


• TTL/CMOS compatible (sink mode)


• Integrated snubber


• LED status indication


• Reverse voltage protection for DC/AC types


• Terminals are polarised to prevent reverse connection


• Built in safety cover to meet IP 20 protection

Specifications

• Panel Mount/ Surface Mount


• Output Device: Triac


• Contact figuration: SPST


• Opto isolation 4000VAC


• Minimum Load Voltage: 24 V rms


• Maximum Load Voltage: 240 V rms, 280 V rms


• Dimensions: 47.75 mm x 46.6 mm x 36.5mm

Applications
