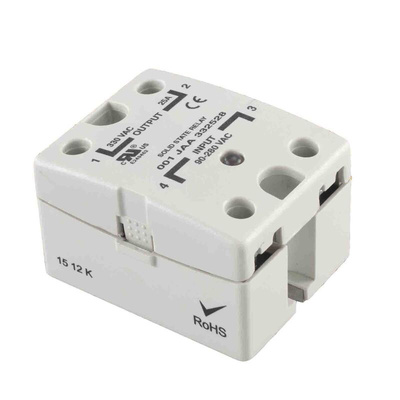

RS PRO Solid State Relay, 10 Amps Load, Panel Mount, Surface Mount, 480 V rms Load

RS PRO Solid-State Relays - SCR Output

RS PRO is proud to introduce a high-performing range of solid-state relays with SCR outputs. SCR stand for silicon-controlled rectifier. During application, the device detects the input signal and generates a gate voltage to trigger the SCR which starts the current flow through the output circuit.
These SCR solid-state relays switch high-power loads rapidly and reliably without any mechanical wear or arc formation. They can handle high voltages and currents, making them suitable for industrial and power control applications.

Why Would You Choose an SCR Solid-State Relay?

Additionally, SCR solid-state relays offer other benefits such as silent operation, high switching speeds, and improved efficiency. They are less prone to electromagnetic interference and have better resistance to shock and vibration compared to electromechanical relays.

Features and Benefits

• Opto Isolation 4000VAC


• Zero Volt Switching or Random Switching


• TTL/CMOS Compatible (Sink mode)


• Integrated Snubber


• LED Status Indication


• Reverse Voltage Protection for DC/AC Types


• Output: NO/NC Configuration


• Terminals are polarised to prevent reverse connection


• Built in Safety Cover to Meet IP 20 Protection

Specifications

• Panel Mount/ Surface Mount


• Output Device: SCR


• Contact figuration: SPST


• Opto isolation 4000VAC


• Minimum Load Voltage: 24 V rms, 48 V rms


• Maximum Load Voltage: 280 V rms, 480 V rms or 600 V rms


• Dimensions: 57.75 mm x 46.6 mm x 36.5mm

Applications

• Manufacturing


• Automation


• HVAC


• Power distribution systems
