Testec TT-SX 9000 Series TT-SX 9002 Oscilloscope Probe, Active, Differential Type, 30MHz, 1:20, 1:200, BNC Connector

Product Details

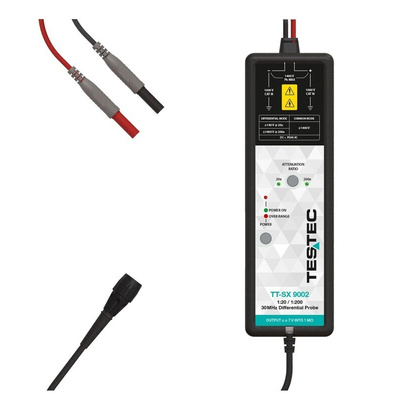

TT-SX 9002 - 30MHz active differential probe - x20 / x200

The Testec TT-SX 9002 High-Voltage Differential probes allow conventional earth-grounded oscilloscopes to be used for floating signal measurements - up to1400V differential or common mode voltage (x200). This model offers user selectable attenuation setting (x20 & x200), making the probe highly versatile and usable for a broad range of applications including power supply measurements and motor controls. This probe is compatible with any oscilloscope with a 1 MΩ BNC female input
and feature up to 30 MHz of bandwidth. The probe can be powered by an oscilloscope USB port (USB Power Cord USB-A to USB-C included), internal batteries (4 x AA batteries), or USB power adapter, both not included in the scope of delivery. The probe is shipped standard with a factory calibration certificate.

30 MHz bandwidth
Up to 1400V differential (DC + pk AC)
1,000V CAT III rated
cTUVus safety certified
Voltage over range indicator
Switchable attenuation ranges
Multiple power options - batteries, oscilloscope, or mains
Insulated BNC interface
Protective rubber boot

Applications

power supply measurments
motor controls
product design applications
automotive testing

Supplied with/Kit contains:

2 x hook clips (red and black)
1 x USB Power Cord (1 m) - USB-A to USB-C
1 x calibration certificate

What other Probes are available in this Testec range?

TT-SX 9001

Approvals/Certification

EN61010-031:2015 Ed. 2.0
EN61010-1:2010/AMD:2016
2014/35/EU
EN61326-2013
2014/30/EU
cTUVus
CE
UKCA
RoHS 2
China RoHS2

Instruction sheet - 15602

Datasheet - 15602
