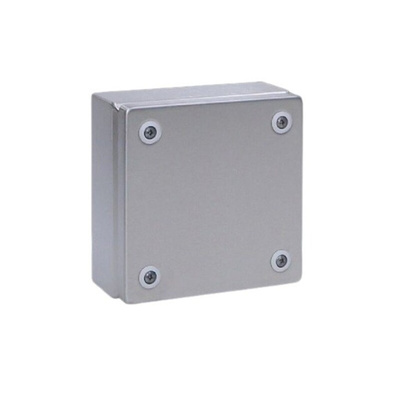

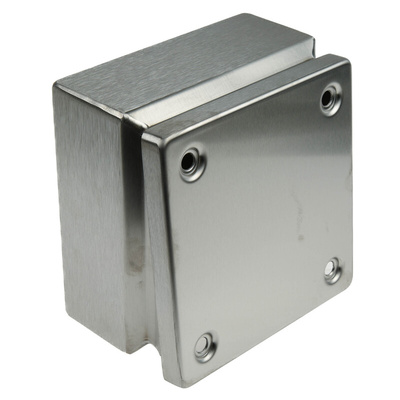

1521010, Rittal KL Series Steel Stainless Steel Junction Box, IP66, 150 x 150 x 85mm

Stainless Steel Terminal Boxes, KL Series

The KL Series enclosure from Rittal is folded and welded from a single piece of 1.25 mm stainless steel. The cover of the enclosure has a channel with a foamed-in PU seal providing IP66 protection. The inside of the enclosure has profiles with mounting holes for easy installation of a chassis plate or DIN rail.

Retaining cord
Profile strips on both sides of enclosure ensure maximum mounting depth is achieved
Facilities for mounting C rail and 'top hat' DIN rail
Polyurethane sealing gasket
Material 304 / 1.4301 stainless steel

Approvals

UL, CSA, TUV, VDE

Rittal Stainless Steel Terminal Box, 150mm Width, 85mm Depth - KL Series - 1521010

Use this Rittal terminal box to store your electrical equipment safely. Its 304-grade stainless steel construction means it maintains its robust shape over time, resisting dents, scratches and rust buildups for reliable performance. The main part of the box consists of one sheet of metal welded together, while the cover is removable so you can take it on and off as needed. The terminal box also contains a PU (polyurethane) sealing gasket that insulates the contents and protects them against contaminants.

Features & Benefits

• IP66 (ingress protection) rating means it can withstand dust and high-pressure water jets from any direction
• Retaining cord securely fastens to the cover to prevent it from coming open accidentally
• No window on cover to prevent unauthorised personnel from seeing its contents
• Slim depth of 85mm so it won't protrude too far from your surface

Applications

• Road maintenance workshops
• Machine automation
• Factory equipment
• Laboratory testing

How do I mount this terminal box?

You can use the profiled mounting holes to quickly and easily install the terminal box onto a DIN rail or a chassis plate.

Approvals

UL; CSA; TUV; VDE

Certificate

Datasheet

Instruction Sheet - Terminal Boxes KL Stainless Steel

Catalogue - Terminal Boxes KL

Datasheet - 1521010
