1006600, Rittal AE Series 304 Stainless Steel Wall Box, IP66, 380 mm x 380 mm x 210mm, Настенный шкаф

Rittal AE Compact Enclosures

The AE series from Rittal is a compact stainless steel enclosure with an all-round foamed-in PU seal offering IP66 protection to IEC 60 529.

Protection category: IP66 to IEC 60 529, NEMA 4X and IK08
Stainless steel 1.4301 (AISI 304) enclosure and door
Door opening angle approx. 130°

Enclosure Canopy - available separately

Stock no. 457-1067 is for enclosure size W 300 x D 210 mm
Stock no. 457-1073 is for enclosure size W 500 x D 210 mm
Stock no. 457-1023 is for enclosure size W 200 x D 155 mm
Stock no. 457-1045 is for enclosure size W 380 x D 210 mm

Black Plastic Handles - available separately

Stock no. 457-1095 is a handle with lock cylinder insert, lock no. 3524 E (cannot be used with stock no. 784-6171)
Stock no. 860-4506 is a handle and casing, without lock cylinder insert
Stock no. 860-4524 is a handle and casing, with lock cylinder insert, lock no. 3524 E

Approvals

UL, CUL, TUV, CSA and Lloyds Register of Shipping.

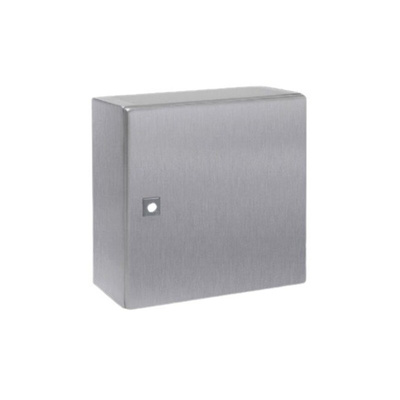

Rittal Stainless Steel Wall Box, 380mm Width, 210mm Depth - AE Series - 1006600

Provide your workplace with safe and secure storage using this wall box from Rittal. It mounts to an external wall bracket so you can install it at standing height for ease of use. The wall box has a 380mm square shape with a 210mm external depth, providing you with ample storage space. It's commonly used for holding property keys on a rack, as an equipment locker or as a cover for an electrical unit. Pair it with an enclosure canopy and a black plastic handle for increased ease of use.

Features & Benefits

• Metal door prevents unauthorised personnel from seeing the contents of the box for enhanced security
• PU (polyurethane) foam sealant keeps contaminants out
• Cam lock to prevent unauthorised access
• IP66 (ingress protection) rating for protection against dust and high-pressure water sprays

Applications

• Concierge offices
• Factory control rooms
• Utility rooms

What is this wall box made of?

This wall box is made from 304-grade stainless steel, a strong steel alloy that's resistant to impact and wear. This alloy contains chromium and nickel to increase its resistance to rust buildups, making it a good choice for use in humid or damp environments.

Approvals

UL; CSA; TUV; VDE

Certificate

Instructions

Datasheet

Datasheet - 1006600

Dimension Sheet - Compact Enclosures AE
