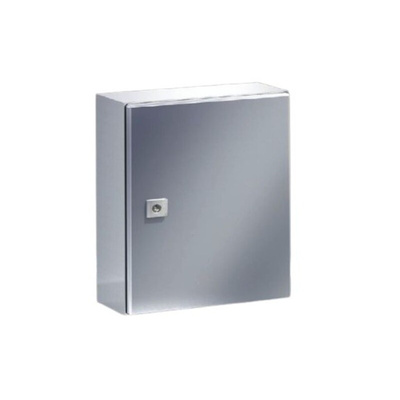

1005600, Rittal AE Series 304 Stainless Steel Wall Box, IP66, 380 mm x 300 mm x 210mm, Настенный шкаф

Rittal AE Compact Enclosures

The AE series from Rittal is a compact stainless steel enclosure with an all-round foamed-in PU seal offering IP66 protection to IEC 60 529.

Protection category: IP66 to IEC 60 529, NEMA 4X and IK08
Stainless steel 1.4301 (AISI 304) enclosure and door
Door opening angle approx. 130°

Enclosure Canopy - available separately

Stock no. 457-1067 is for enclosure size W 300 x D 210 mm
Stock no. 457-1073 is for enclosure size W 500 x D 210 mm
Stock no. 457-1023 is for enclosure size W 200 x D 155 mm
Stock no. 457-1045 is for enclosure size W 380 x D 210 mm

Black Plastic Handles - available separately

Stock no. 457-1095 is a handle with lock cylinder insert, lock no. 3524 E (cannot be used with stock no. 784-6171)
Stock no. 860-4506 is a handle and casing, without lock cylinder insert
Stock no. 860-4524 is a handle and casing, with lock cylinder insert, lock no. 3524 E

Approvals

UL, CUL, TUV, CSA and Lloyds Register of Shipping.

Rittal Stainless Steel Wall Box, 300mm Width, 380mm Height - AE Series - 1005600

Keep equipment and fragile items protected with this Rittal wall box. It offers a generous height of 380mm for storing taller hanging equipment such as hand tools or torches. The ample 300mm width also makes it suitable for wider units such as a key rack. The wall box's cam action cylinder provides a secure lock to prevent unauthorised access. The door opens with an insert handle when turned, so it won't come unlocked accidentally. For optimised use, pair this wall box with an enclosure canopy and a plastic handle.

Features & Benefits

• External wall bracket so you can mount the box at standing height for easy access
• 304-grade stainless steel body material is resistant to wear and corrosion for long-lasting use
• IP66 (ingress protection) rating indicates the box is sealed against dust and high-pressure water jets
• Non-transparent cover to hide the contents of the box from passersby

Applications

• Electrical control rooms
• Caretaker offices
• Industrial work areas

How is this wall box sealed?

This wall box has a foamed polyurethane (PU) seal that keeps the contents of the box insulated and protects them against moisture and contaminants.

Approvals

UL; CSA; TUV; VDE
