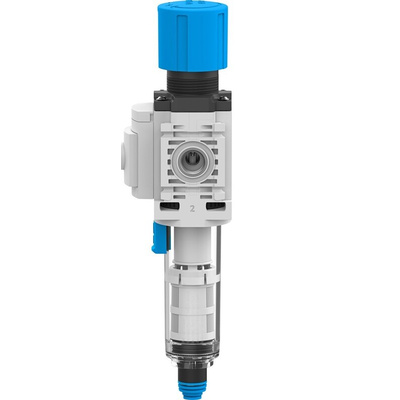

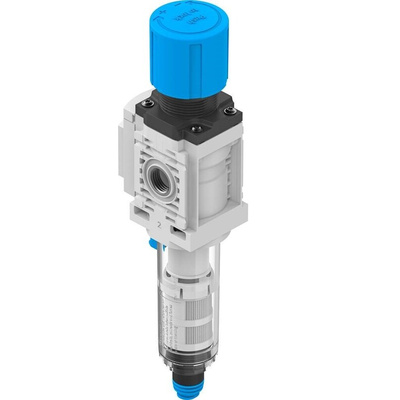

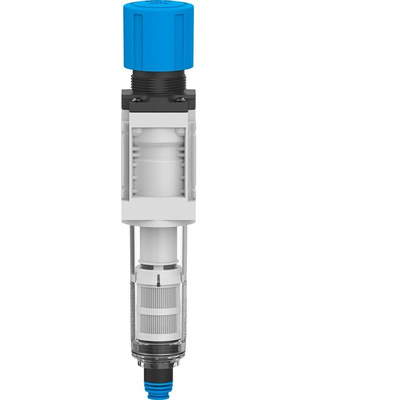

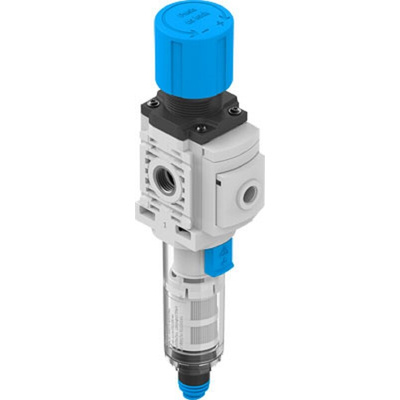

MS4-LFR-1/4-D6-C-P-VC-A8-B, Festo MS Filter Regulator, 5μm, G 1/4, Automatic

Festo Filter Regulator, 2 to 10 Bar Operating Pressure, 1500L/min Flow Rate - MS4-LFR-1/4-D6-C-P-VC-A8-B

This filter regulator from Festo provides a reliable supply of uncontaminated compressed air, helping to raise the performance bar in your pneumatic applications. Its PA-reinforced housing means it's built for the long haul in demanding environments. With a nominal flow rate of 1500L/min, you can rely on it in demanding applications working at levels up to 10 bar. To ensure your compressed air is free of condensate, the filter includes an integrated water separator. To prevent tampering, keep the unit under lock and key by simply securing its rotary knob.

Features & Benefits

• PA-reinforced housing resists corrosion for longevity in moist operating conditions
• Light weight of 213g, so puts minimal strain on a pneumatic circuit
• Modular design makes it easy to install in-line for time-saving assembly
• Durable nitrile rubber seals that withstand high pressures without tearing
• Suitable to use with hot compressed air, thanks to a media temperature range between +5°C and +50°C

Applications

• Hospitals and medical centres
• Textile industry
• Agricultural equipment
• Pulp and paper mills

Does this filter regulator come with mounting accessories?

Yes, for snappy and convenient installation, this unit comes with mounting accessories included.

Datasheet - MS4-LFR-1/4-D6-C-P-VC-A&

Catalogue - Filter Regulators

Instruction Sheet - MS4-LFR Series
