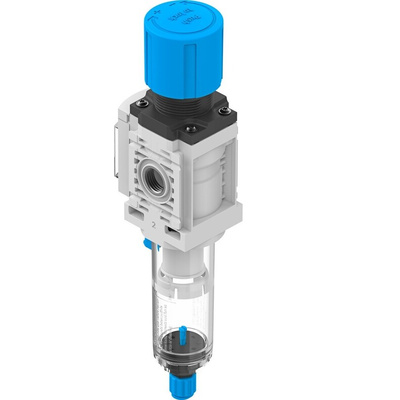

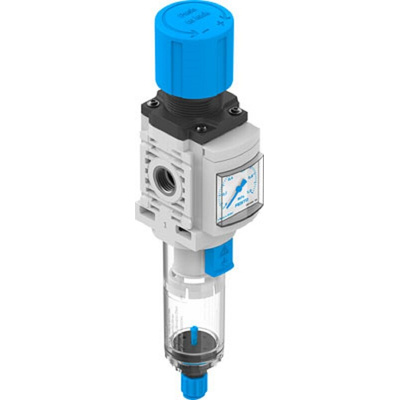

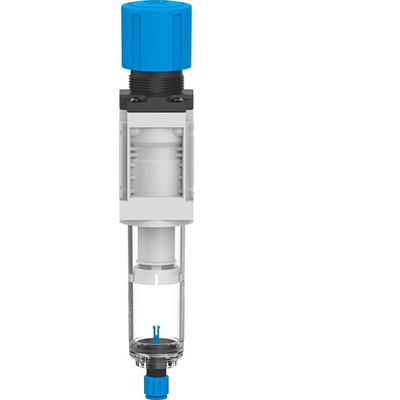

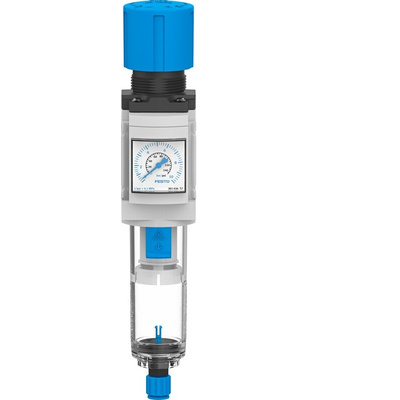

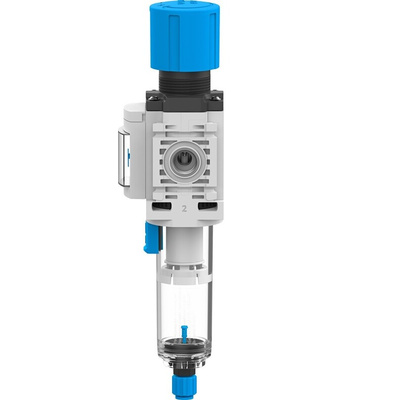

MS4-LFR-1/4-D6-E-P-M-AG-MPA-B, Festo MS Filter Regulator, 40μm, G 1/4, Manual

Festo Filter Regulator, Size 4, 1 to 10 Bar Operating Pressure - MS4-LFR-1/4-D6-E-P-M-AG-MPA-B

Enhance performance in your pneumatic circuits with this filter regulator from Festo. It's the kind of reliable and versatile workmate we all like, as it does two jobs in one – removing contaminants and controlling the flow of compressed air into your systems. Thanks to a durable reinforced PA housing, this unit can withstand wear and mechanical impact, so you can rely on it to stay on shift in the long term, even when the going gets tough. It can deliver between 0.3 and 7 bar of output pressure, making it a flexible all-rounder for light-duty and medium-duty applications.

Features & Benefits

• Wide operating temperature range of -5°C to +50°C for use in demanding conditions
• G1/4 thread for simple installation on your equipment
• NBR seals keep dust and contaminants out for optimal performance
• Integrated pressure gauge for quick and simple monitoring
• Comes with a rotary actuator and lock for easy pressure regulation

Applications

• Medical facilities
• Chemical laboratories
• Water treatment plants

How do I drain this filter regulator?

This filter regulator is designed to be manually drained. It has a knob at the bottom of its drain bowl that you turn to remove the contents of the container.

Datasheet - MS4-LFR-1/4-D6-E-P-M-AG-MPA-B

Catalogue - Filter Regulators

Instruction Sheet - MS4-LFR Series
