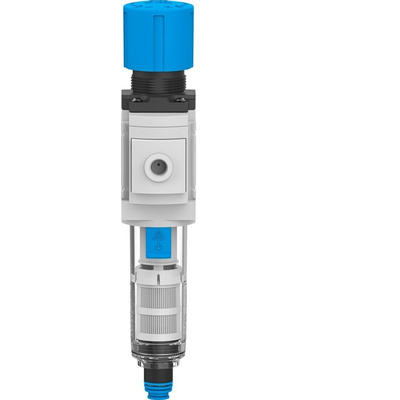

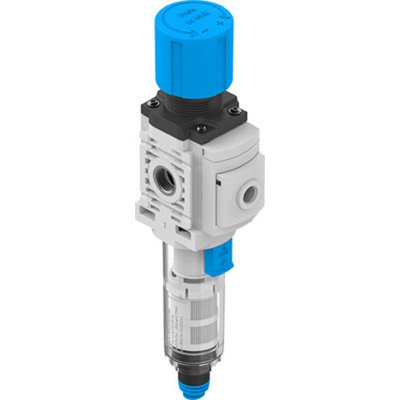

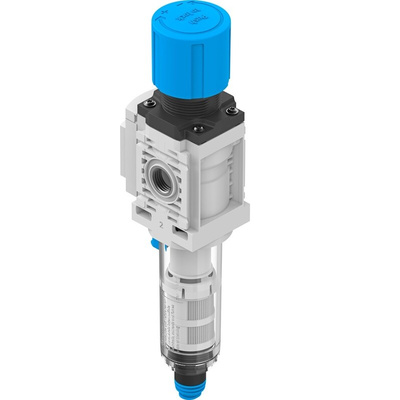

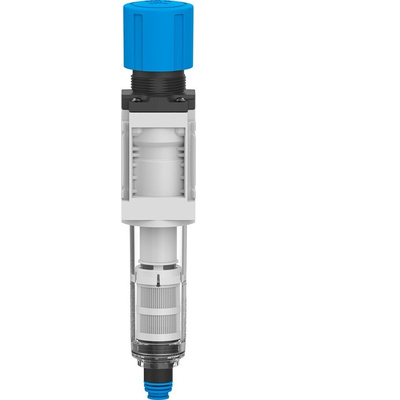

MS4-LFR-1/4-D6-E-P-VC-A8-B, Festo MS Filter Regulator, 5μm, G 1/4, Automatic

Festo Filter Regulator, 16.5ml Maximum Condensate Volume, Reinforced PA Housing - MS4-LFR-1/4-D6-E-P-VC-A8-B

Control and purify the compressed air flowing through your pneumatic system with this Festo filter regulator. It does double duty by removing contaminants, as well as letting you manage the input pressure in your air-controlled equipment. The device's PE filter has a 40μm filtration size, so it catches tiny dust particles to ensure your input is as clean as a whistle. A fully automatic draining system takes the job of worrying about saturation in the unit's condensate bowl off your to-do list.

Features & Benefits

• Reinforced PA housing is resistant to corrosion and impact, making it suitable for harsh environments
• Light weight of 213g so it's easy to handle during installation and won't strain your equipment
• Wide operating pressure range of 2 to 10 bar for versatile use in light-duty to heavy-duty applications
• G1/4 threaded connection ports for simple and time-saving mounting

Applications

• Aerospace industry
• Marine engineering
• Machine tools

In what position do I assemble this filter regulation?

This filter regulator is designed to be assembled in a vertical 90° position, with a tolerance of ±5°.

What's the temperature range of this unit?

The device performs in a temperature range between -5°C and +50°C, making it suitable for use in demanding conditions.

Datasheet - MS4-LFR-1/4-D6-E-P-VC-A&

Catalogue - Filter Regulators

Instruction Sheet - MS4-LFR Series
