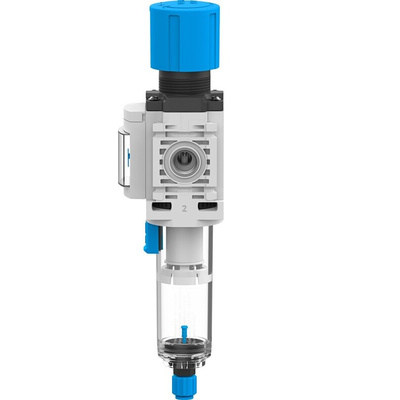

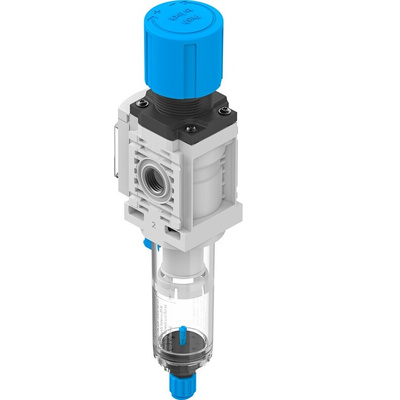

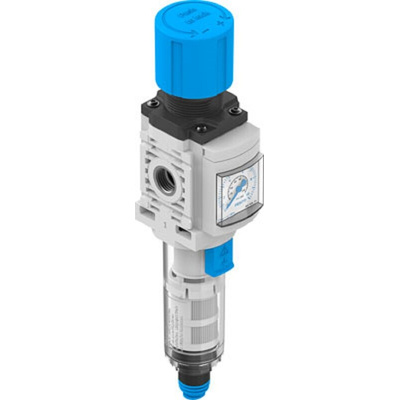

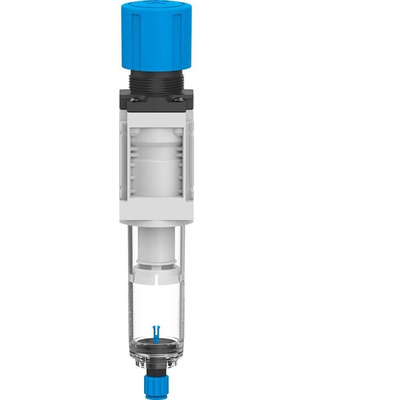

MS4-LFR-1/4-D6-E-P-VC-AG-BAR-B, Festo MS Filter Regulator, 40μm, G 1/4, Automatic

Festo Filter Regulator, Built-In Pressure Gauge, 1700L/min Nominal Flow Rate - MS4-LFR-1/4-D6-E-P-VC-AG-BAR-B

Clean and consistent – that's what we're all looking for in our pneumatic network. Make it happen with this filter regulator from Festo, which handles the draining automatically so you don't have to. The unit combines the functions of two devices in one, so it's space-efficient and does all the hard work for you. Don't worry about wastewater or contaminants as the built-in PC condensate bowl will catch them. You can adjust the input pressure via this component's rotary knob, which has a detent to keep it in place in vibrating settings.

Features & Benefits

• 40μm filtration size to catch tiny contaminants and ensure clean air input
• Broad operating temperature range of -5°C to +50°C for use in challenging settings
• Can be panel or line-mounted to fit your design needs

Applications

• Automotive industry
• Food production plants
• Chemical laboratories

How durable is this filter regulator?

This unit's reinforced PA housing withstands corrosion and mechanical impact, so it's a durable option for harsh industrial environments.

How do I monitor pressure levels on this unit?

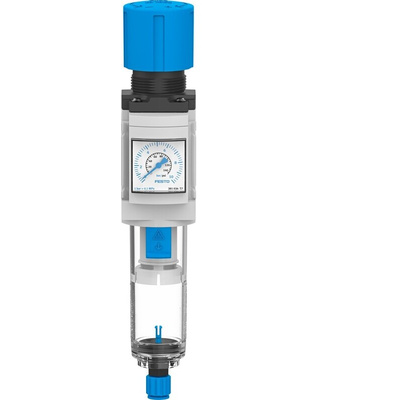

The filter regulator is equipped with a pressure gauge that makes it easy to read input pressure levels. With measurements displayed in both MPa and bar it's well-suited to global use.

Datasheet - MS4-LFR-1/4-D6-E-P-VC-AG-BAR-B

Catalogue - Filter Regulators

Instruction Sheet - MS4-LFR Series
