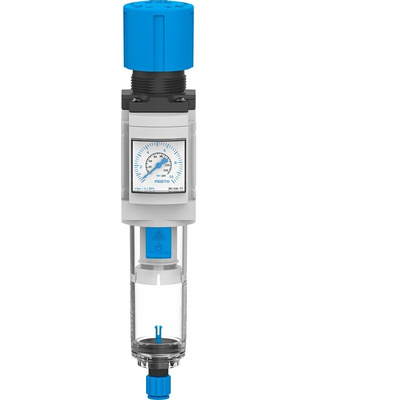

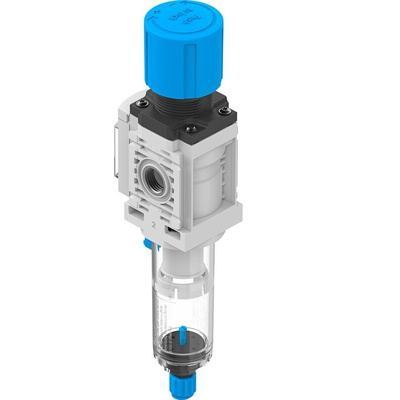

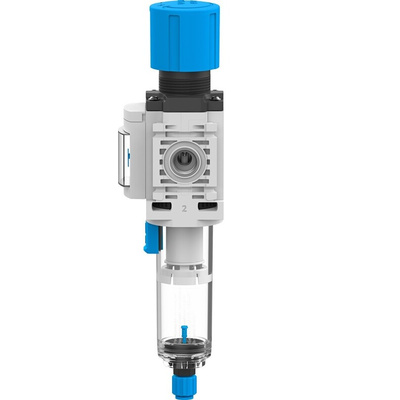

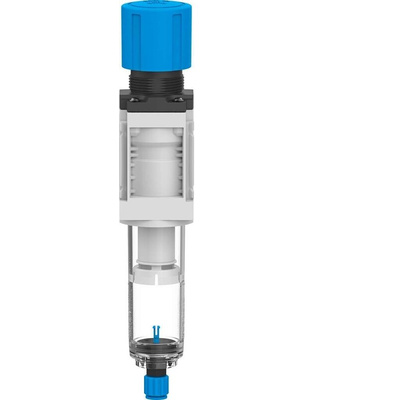

MS4-LFR-1/4-D6-E-P-VC-AG-MPA-B, Festo MS Filter Regulator, 40μm, G 1/4, Automatic

Festo Filter Regulator, PC Condensate Bowl, NBR Seals - MS4-LFR-1/4-D6-E-P-VC-AG-MPA-B

Dreaming of seamless and consistent airflow in your pneumatic system? This filter regulator from Festo will make it a reality. Its reinforced polyamide housing offers reliable resistance to corrosion and impact, so you can put it to the test in harsh conditions. The device has a 40μm PE filter that catches tiny dust and contaminant particles – the ever-present pests that can cause blockages in your pneumatic channels if left unchecked. This prevents downtime and improves performance. As this unit combines the functions of two devices in one, it's a space-saving solution for smaller setups.

Features & Benefits

• 16.5ml maximum condensate bowl volume to hold waste, eliminating the need for constant drainage
• Integrated gauge for easy pressure-level monitoring
• Front panel and line mounting options let you tailor your solution to meet your design needs
• Broad operating temperature range between -5°C and +50°C for use in demanding settings

Applications

• Dental equipment
• Material handling machinery
• Mechanical workshops

How do I drain this filter regulator?

This device has an automatic drain mechanism that empties its condensate bowl when full. In cases of emergency, you can use the manual momentary-contact switch to drain it yourself.

Datasheet - MS4-LFR-1/4-D6-E-P-VC-AG-MPA-B

Catalogue - Filter Regulators

Instruction Sheet - MS4-LFR Series
