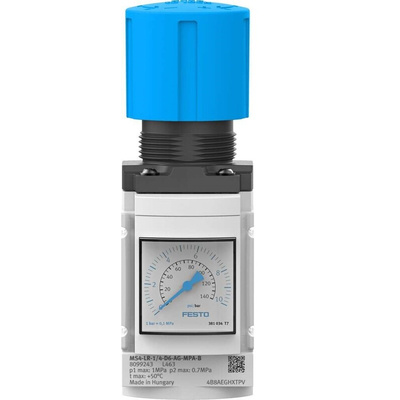

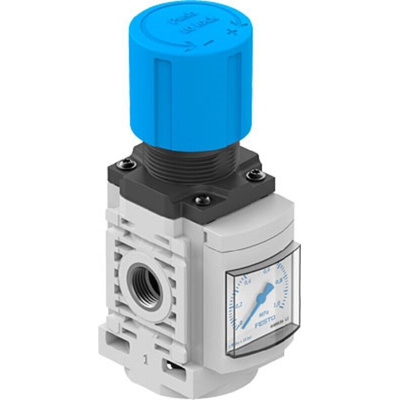

MS4-LR-1/4-D6-AG-MPA-B, Festo G 1/4 Pneumatic Regulator - 0.1MPa to 1MPa, 1/4 in, 10bar max. input, 8099359

Festo Pneumatic Regulator, PA-Reinforced, -5°C to +50°C Operating Temperature - MS4-LR-1/4-D6-AG-MPA-B

Don't let managing your pneumatic equipment put you under pressure. With this pneumatic regulator from Festo, you increase or reduce output pressure by simply turning the built-in rotary knob. The detent on the knob lets you lock it in place, keeping it steady in vibrating conditions. Thanks to an integrated pressure gauge, you can easily keep up with any changes in your system's condition. A wide operating temperature range between -5°C and +50°C means this device can stand the heat in challenging environments.

Features & Benefits

• Pressure regulation range between 0.3 and 7 bar for versatile operation
• PA-reinforced body is chemical-resistant for durability
• NBR seals are resistant to oils and solvents to withstand harsh conditions
• Compatible with compressed air and inert gases for added versatility

Applications

• Medical technology
• Oil and gas industry
• Marine engineering
• Water treatment plants

How do I install this regulator?

The unit comes with two G1/4 ports. Thanks to the threaded design, you can quickly attach them to compatible equipment without the need for compex tools. For flexibility in your setup, you can assemble this device in any position.

Datasheet - MS4-LR-1/4-D6-AG-MPA-B

Catalogue - Pressure Regulators

Instruction Sheet - MS4-LR Series
