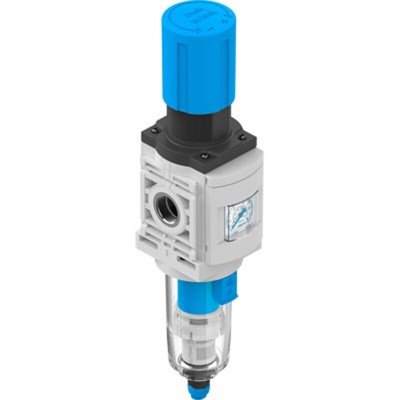

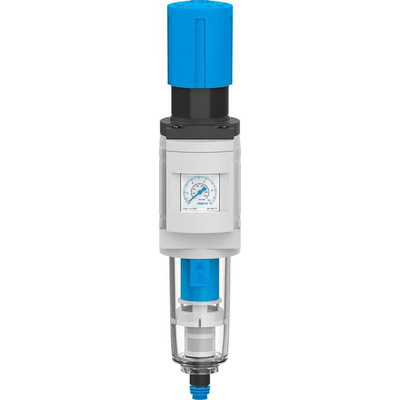

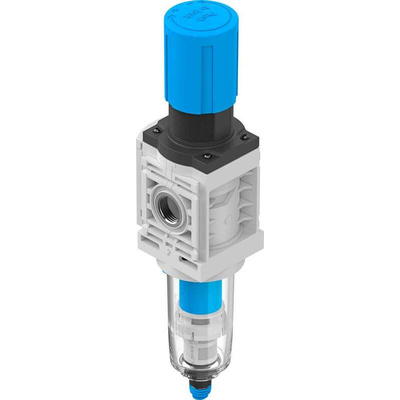

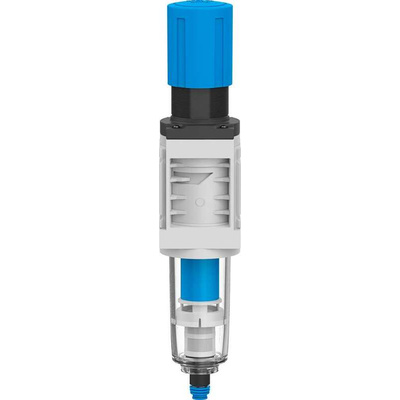

MS6-LFR-1/2-D6-C-P-VC-AG-BAR-B, Festo MS Filter Regulator, 5μm, G 1/2, Automatic

Festo Filter Regulator, 2 to 10 Bar Operating Pressure, Lockable Rotary Knob - MS6-LFR-1/2-D6-C-P-VC-AG-BAR-B

Take the pressure off your pneumatic air-preparation setup with this filter regulator from Festo. The modular-style unit makes it a doddle to configure your filter regulator with other devices, such as a lubricator module (202-3189) or quick exhaust valve (22-8210). This means you can get your system up and running with minimal downtime. The regulator itself is directly-controlled using a piston, so you can rest assured it will respond reliably to pressure changes. Thanks to the handy rotary knob and integrated gauge, adjusting and setting your desired pressure isn't rocket science. At the base, a built-in filter with a grade of 5μm removes particles and condensate to keep your air supply clean.

Features & Benefits

• Regulator knob is lockable to prevent tampering
• Wide pressure regulation range between 0.3 and 7 bar for precise management of your system

Applications

• Aerospace industry
• Automotive manufacturing
• Electronics assembly
• Food processing
• Pharmaceuticals

Does this filter regulator have an automatic or manual drain?

This filter regulator has a fully automatic drain, so manual draining is a thing of the past. The filter bowl is made from transparent polycarbonate, which makes it durable and easy to monitor.

Datasheet - MS6-LFR-1/2-D6-C-P-VC-AG-BAR-B

Catalogue - Filter Regulators

Instruction Sheet - MS6-LFR Series
