MS6-LFR-1/2-D6-E-P-M-AG-BAR-B, Festo MS Filter Regulator, 40μm, G 1/2, Manual

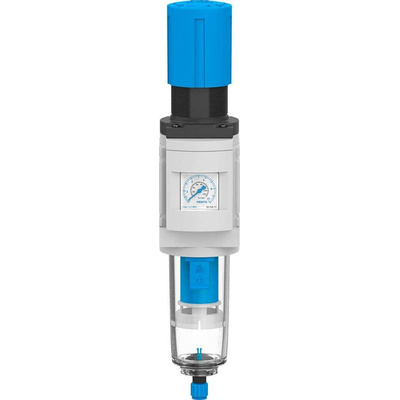

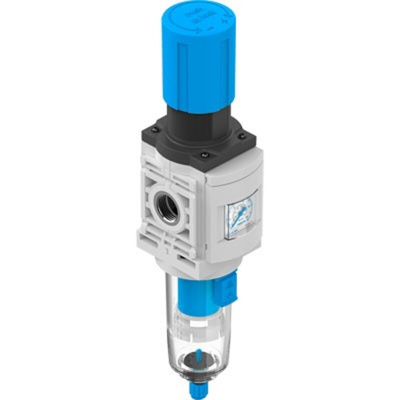

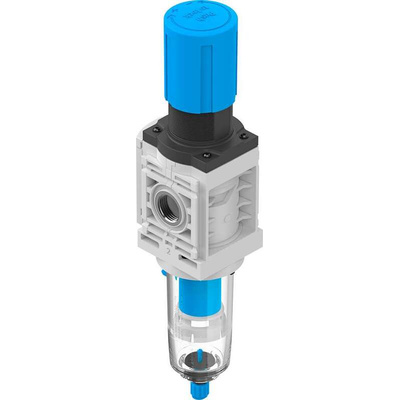

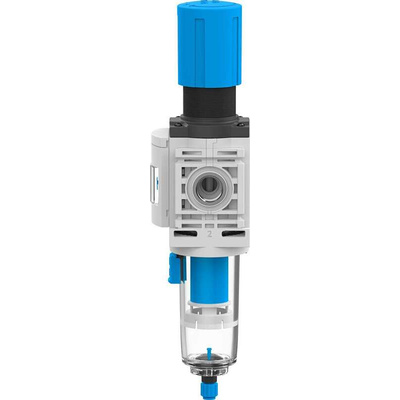

Festo Filter Regulator, 5300L/min Flow Rate, Lockable Rotary Knob - MS6-LFR-1/2-D6-E-P-M-AG-BAR-B

This filter regulator from Festo combines two air preparation functions in one, so you won't feel pressure to make space on your pneumatic line. The regulator is simple to operate by turning the knob on top of the unit, allowing you to make small adjustments between 0.3 and 7 bar. This means you can optimise the pressure and ensure your machines run like clockwork. A 40μm filter and bowl work to remove contaminants and condensate from your air input, keeping your supply as clean as a whistle. The bowl and filter are easy to remove when it's time for servicing, while clip-and-thread fixings ensure they stay safe and sound during use.

Features & Benefits

• Modular design makes it easy to combine with other air-preparation devices in the MS series
• Lockable knob prevents accidental pressure changes
• Directly-controlled piston operation for reliable pressure regulation
• 5,300L/min flow rate to work with high-performance systems

Applications

• HVAC installations
• Oil and gas industry
• Water treatment plants
• Food and beverage processing
• Electronics assembly

How do I mount this filter regulator?

For straightforward installation, mount this filter regulator to the front of a panel. It works at +/- 5° to the vertical, so accommodates some misalignment.

Datasheet - MS6-LFR-1/2-D6-E-P-M-AG-BAR-B

Catalogue - Filter Regulators

Instruction Sheet - MS6-LFR Series
