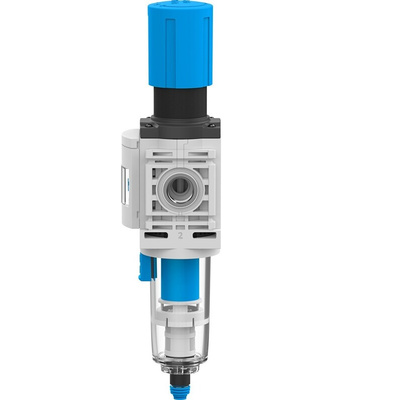

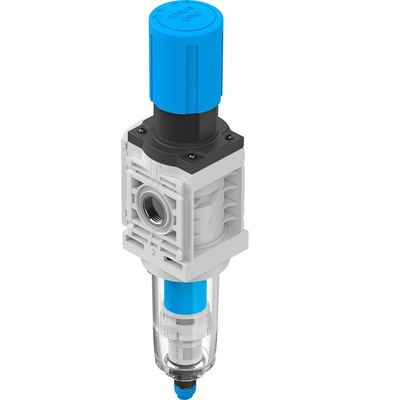

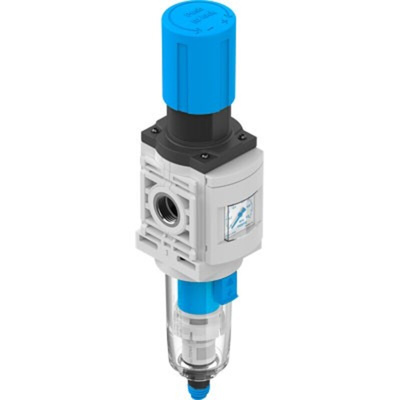

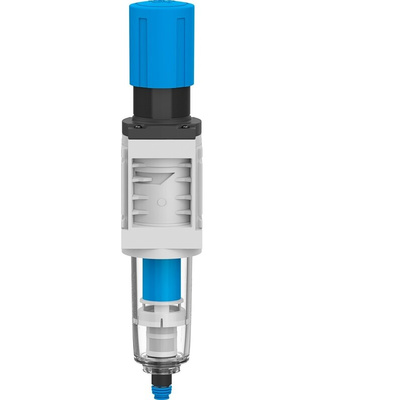

MS6-LFR-1/2-D6-E-P-VC-AG-MPA-B, Festo MS Filter Regulator, 40μm, G 1/2, Automatic

Festo Filter Regulator, 5300 L/min Standard Nominal Flow Rate, 2 to 10 Bar Operating Pressure - MS6-LFR-1/2-D6-E-P-VC-AG-MPA-B

Keep your pneumatic system under the right kind of pressure with this filter regulator from Festo. The multitasking device packs a positive punch by regulating flow rates while keeping compressed air clean, giving you optimal performance and limiting downtime. A diaphragm control valve reduces sneaky leaks to maintain airtight compression. You can rely on the locking rotary knob to secure your settings and prevent accidental resets from tampering with your productivity. The robust PA-reinforced housing shields against impact to prolong the component's service life.

Features & Benefits

• Broad operating pressure scope from 2 to 10 bar for compatibility with standard systems
• 40μm capacity can efficiently filtrate compressed medium
• Lightweight item of 589g puts minimal strain on installations
• Wide operating temperature range between +5°C and +50°C for use in demanding conditions

Applications

• Barostatic equipment
• Medical applications
• Industrial pumps
• Lifting systems
• Research and development facilities

Do I need to empty this filter regulator's drain?

It has a fully automatic drain to save you a job by preventing liquid build-up and compressed-air loss.

How do I mount this filter regulator?

You can either panel mount it or install it in-line with the appropriate accessories.

Datasheet - MS6-LFR-1/2-D6-E-P-VC-AG-MPA-B

Catalogue - Filter Regulators

Instruction Sheet - MS6-LFR Series
