MS6-LR-1/2-D6-AG-BAR-B, Festo G 1/2 Pneumatic Regulator - 0.1MPa to 1MPa, 1/2 in, 10bar max. input, 8099205

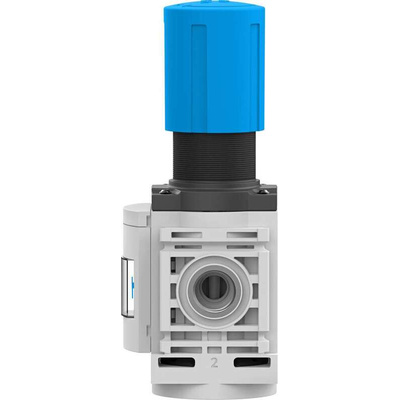

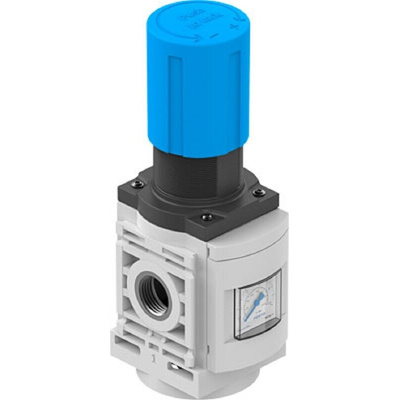

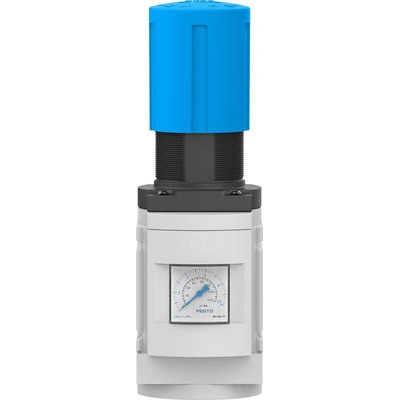

Festo Pneumatic Regulator, G1/2 Threaded Connection, 6000L/min Nominal Flow Rate - MS6-LR-1/2-D6-AG-BAR-B

Use this pneumatic regulator from Festo to ease off or turn up the pressure in your pneumatic equipment. Simply turn the rotary knob to adjust the pressure setting. Thanks to an integrated detent, you can lock the knob to keep it stable in vibrating conditions. A built-in pressure gauge is on hand to let you easily monitor any changes in the output pressure. This unit displays the pressure readings in both bar and psi so you can keep up with the pressure levels in more ways than one.

Features & Benefits

• Threaded ports connection for quick, tool-free assembly
• NBR seals help prevent leakage
• Can be lubricated to prevent mechanical wear
• Broad pressure regulation range between 0.3 and 7 bar for versatility
• Standard nominal flow rate of 6,000L/min for use in high-flow systems

Applications

• Pharmaceutical industry
• HVAC systems
• Chemical plants
• Manufacturing industry

What media can I use with this pneumatic regulator?

This regulator is designed for use with compressed air and inert gases, making it a versatile choice.

What's the operating temperature of this regulator?

With a wide operating temperature range between -5°C and +50°C, you can rest assured that this pneumatic regulator can withstand harsh industrial environments.

Datasheet - MS6-LR-1/2-D6-AG-BAR-B

Catalogue - Pressure Regulators

Instruction Sheet - MS6-LR Series
