VFOE-LE-T-G18-Q6, Festo VFOE Series Pneumatic Manual Control Valve, 8068726, Фитинг

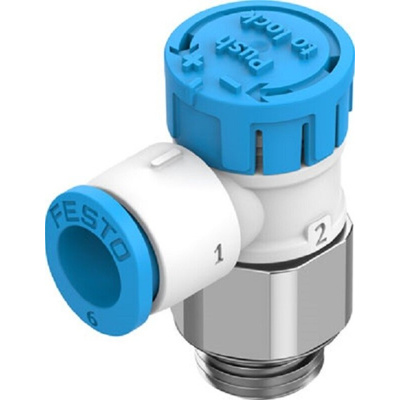

Festo Pneumatic Manual Control Valve, 0.2 to 10 Bar Operating Pressure Range, 165L/min Standard Nominal Flow Rate - VFOE-LE-T-G18-Q6

Turn flow-rate regulation into a low-pressure activity with this one-way pneumatic manual control valve from Festo. Thanks to its G1/8 threaded connection, you can easily screw it into a pneumatic drive. Controlling the drive's stroke speed is the work of moments. All it takes to adjust and fix the flow rate between 110 and 200L/min is a twist of the rotary knob and a push on the top lock. This component's hydrogenated NBR seals are resistant tooil and corrosion for a long, leak-free service life in harsh environments.

Features & Benefits

• Wide operating temperature range between -10°C and +60°C for use in demanding conditions
• PBT housing for protection against chemicals and wear
• 360° swiveling ability to allow for flexible installation
• Maximum tightening torque of 6Nm, so it's easy to install by hand

Applications

• Pneumatic power tools
• Food and beverage industry
• Diesel engines

What's the flow rate of this unit in the control direction?

This control valve has a standard nominal flow rate of 165L/min in the control direction, so it's suitable for light-duty applications.

Datasheet - VFOE-LE-T-G18-Q6

Catalogue - One-way Flow Control Valves
