VFOE-LE-T-G18-Q8, Festo VFOE Series Pneumatic Manual Control Valve, 8068727

Festo Pneumatic Manual Control Valve, 170L/min Standard Nominal Flow Rate, PBT Housing Material - VFOE-LE-T-G18-Q8

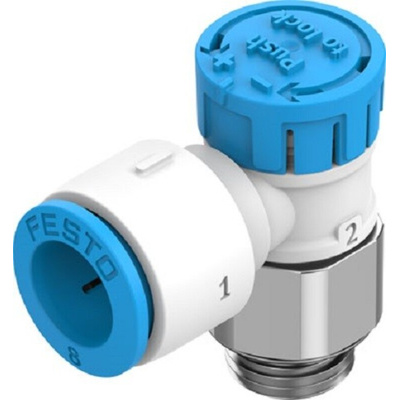

Regulating airflow is a breeze with this one-way pneumatic manual control valve from Festo. By attaching it to a pneumatic drive, you can easily adjust stroke speed with a twist of its blue rotary knob. This handy and hassle-free unit lets you set the flow rate in your process between 130 and 200L/min for greater accuracy with a single blow. As the device has a light weight of only 9.5g, your system won't feel the strain of excess pressure.

Features & Benefits

• Wide operating temperature range between -10°C and +60°C for use in demanding conditions
• PBT housing for resistance to chemicals and impact
• Wide operating pressure range of 0.2 to 10 bar for versatility
• Hydrogenated NBR seals are oil-resistant to prevent leaks in heavy-duty applications

Applications

• Warehouse equipment
• Processing industry
• Industrial automation

Is this valve easy to install?

Yes. The G1/8 threaded connection lets you screw it in place with a low maximum tightening torque of just 6Nm, making it easy to install by hand without the need for specialised tools.
