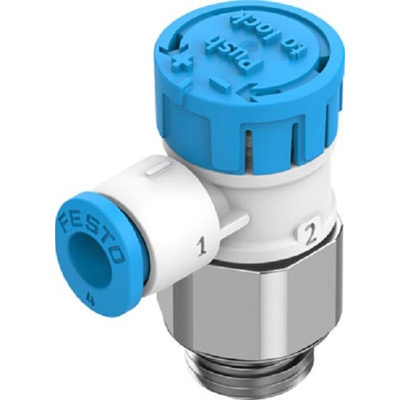

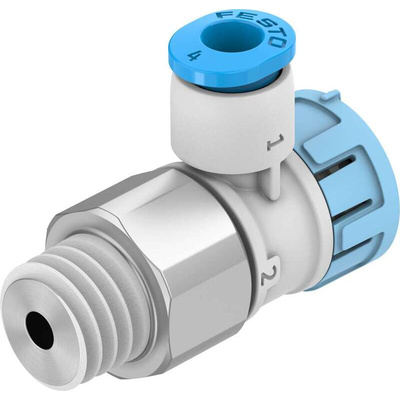

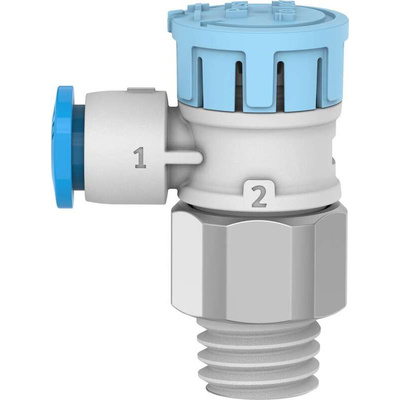

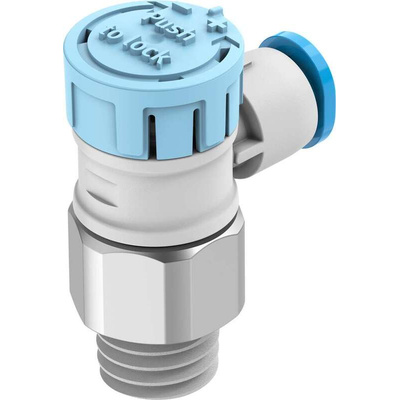

VFOE-LS-T-G18-Q4, Festo Manual Flow Control Pneumatic Manual Control Valve VFOE Series, G 1/8, 1/8in, III B

Festo Pneumatic Manual Control Valve, 9.5g Weight, 260L/min Standard Flow Rate - VFOE-LS-T-G18-Q4

Choose this Festo pneumatic manual control valve to manage the flow of exhaust air in your system. A twist of the actuator takes no time and quickly turns operations on and off, while a built-in lock secures your settings with just a push. The versatile assembly handles airflow between 0.2 and 10 bar and thrives under pressure thanks to NBR seals, which don't corrode when exposed to chemicals, oils and other industrial debris. As the unit weighs just 9.5g, it keeps your equipment streamlined.

Features & Benefits

• Broad operating temperature range between -10°C and +60°C suits use in harsh environments
• Screw mounting makes installation a simple task that doesn't need specialist tools
• G1/8 connection port thread is standardised for easy connection
• PBT housing resists solvents and mechanical strain for long-lasting performance in demanding settings

Applications

• Compressed air management
• Mining systems
• Forging presses

What are this pneumatic manual control valve's dynamic seals made from?

The dynamic seals are made from HNBR to offer high tensile strength, as well as resistance to heat and abrasion.

Datasheet - VFOE-LS-T-G18-Q4

Catalogue - One-way Flow Control Valves
