VFOE-LS-T-M7-Q6, Festo Manual Flow Control Pneumatic Manual Control Valve VFOE Series, M7, M7, III B

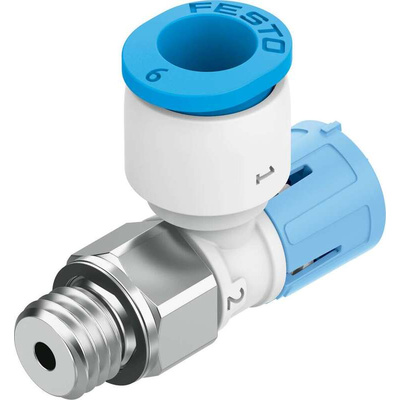

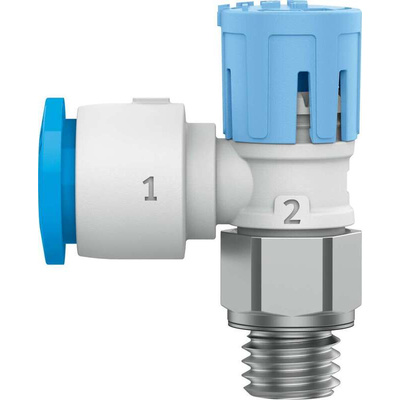

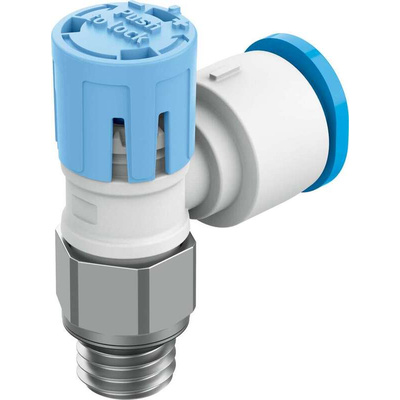

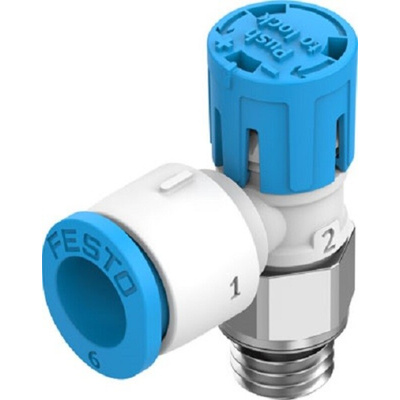

Festo Pneumatic Manual Control Valve, M7 Thread, 165L/min Flow Rate - VFOE-LS-T-M7-Q6

For on-the-fly control of your system's compressed airflow, choose this pneumatic valve from Festo. It can be managed manually, so you have speeds of up to 165L/min at your fingertips. When the valve is closed, the air supply is cut off and you can carry out maintenance safely. A standard M7 threaded mounting makes for straightforward and quick installation. Thanks to a wide operating temperature range between -10°C and +60°C, you can rely on this unit for steady performance in extreme conditions.

Features & Benefits

• ±20% torque tolerance, so stays tight even with fast-moving airflow
• 360° swivelling rotary dial unit lets you reach the knob no matter where it's mounted

Applications

• HVAC systems
• Factory automation
• Power generation industry

What kind of tubing or pipes can I use with this manual control valve?

The M7 port offers wide compatibility with tubing in the PUN-H series, which you can use to connect this valve to your application.

Can I lock this valve?

Yes, the valve has a locking feature to give you peace of mind it's fixed in the 'off' or 'on' position.

Datasheet - VFOE-LS-T-M7-Q6

Catalogue - One-way Flow Control Valves
