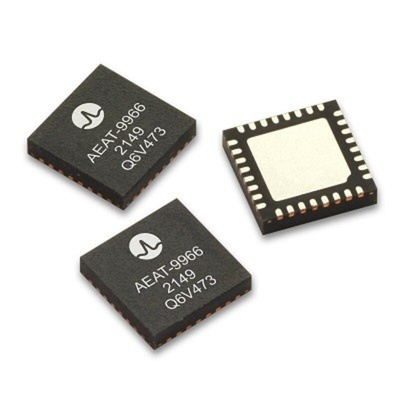

AEAT-9966-Q32, Broadcom 3-Axis Surface Mount Motion Sensor Module, Serial-SPI

The Broadcom AEAT-9966 is a dual/redundancy angular magnetic rotary sensor provides accurate angular measurement over a full 360 degrees of rotation. A sophisticated system uses integrated Hall sensor elements with complex analogue and digital signal processing within a single device. A simple two-pole magnet generates the necessary magnetic field by rotating it in perpendicular. Wide magnetic field sensor configurations allow On Axis (end of shaft) or Off Axis (side of shaft, axial and radial) modes in application. The Broadcom It is a versatile solution capable of supporting a broad range of applications with its robust architecture to measure and deliver both absolute and incremental signals.

5V and 3.3V operating voltage
Operating temperature from –40°C to 125°C
1mA current consumption in sleep mode
Programmable 10 bits up to 18 bits of absolute resolution
Absolute output over 2-wire SSI, 3-wire SSI, 4-wire SPI and PWM
Dedicated output pin for ABI, UVW and Serial Interface
Dedicated zero reset and error pin
Optional 56-bit memory lock function

Datasheet - AEAT-9966-Q32
