TVIP82561, ABUS Security-Center Network Indoor, Outdoor IR PoE Wifi CCTV Camera, 1919 x 1080 pixels Resolution

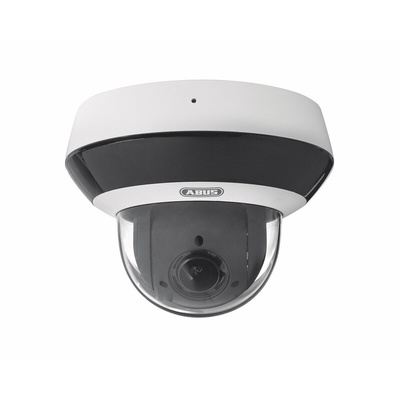

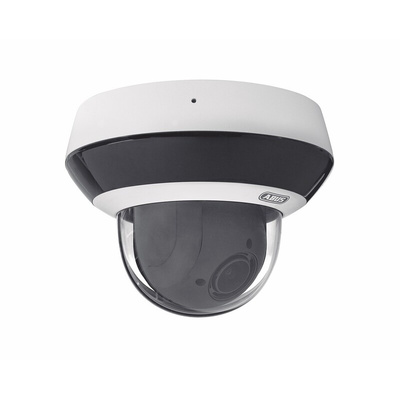

ABUS Network Indoor, Outdoor Wifi IR CCTV PTZ Dome Camera, 2 MPx, IP66

For company premises, business, office or home: the 2MPx IP PoE WLAN PTZ mini dome camera with pan-tilt-zoom function is ideally suited for wide-area 360-degree all-round surveillance. The compact design (Ø 13 x H 11 cm) and the mode of operation (the lens rotates inside the glass dome) are ideal for discreet use. Power can be supplied via network cable (Power over Ethernet, PoE), e.g. from a router or recorder - particularly useful in hard-to-reach installation locations, as it often saves time, space and installation costs. Alternatively, power the camera via a power supply unit and transmit the video data via WLAN.

Easy set-up & video monitoring

Recordings can be stored on a recorder, via NAS or microSD card. The motion detection of the surveillance camera and the strong data compression ensure efficient storage usage. Even the start-up is kept streamlined: Via PC/browser or recorder/monitor as well as ABUS IP Installer, the user interface of the camera is quickly accessed, so that the first live image can be seen in a few minutes. Individual settings are also quickly made (e.g. schedules).

Powerful WDR function & IR LEDs for sharp images all the time

The IP camera also copes with highly fluctuating light conditions, e.g. with a lot of backlight in entrance areas or outdoors in general. It also features infrared LEDs for good visibility in the dark/at night.

Mobile app access

Via ABUS Link Station app, users receive a push notification when a motion alarm is triggered. The Pro version of the app offers unlimited mobile access. Free with Lite version: up to 60 minutes/month data stream (live view/playback).

•\tEasy mobile access to livestream and memory with smartphone/tablet via ABUS Link Station app incl. push message in case of motion alarm; info/images optionally also via e-mail/FTP
•\tFlexible use; supply with power via Power over Ethernet (PoE) or 12 V DC plug-in power supply; transmit data via PoE or WIFI
•\tLean commissioning in a few minutes via PC/browser or recorder/monitor as well as free ABUS IP Installer (fast access to IP address of camera); configuration via established user interface (schedules, etc.)

•\t360-degree all-round view; infinitely variable pan, tilt and 4x optical zoom via app or browser (focal length 2.8 to 12 mm, motor zoom lens); preset positions can be controlled in seconds
•\tTrue WDR function (120 dB) for backlight situations, IR LEDs for night vision up to 20 meters (depending on location), wind & weather proof (IP66 protection), Full HD resolution (2 megapixels, 1080p)

•\tCompact dimensions/size (mini dome design, diameter 13 cm) optimal for discreet 24/7 video surveillance in the company or at home; motion detection means less storage space is required and the searched scene can be found quickly
•\tRecord via microSD memory card (accessory), network video recorder (NVR), or network attached storage (NAS); H.265 Plus video compression for longer recording with highly efficient storage space usage
•\tEasy mobile access to livestream and memory with smartphone/tablet via ABUS Link Station app incl. push message in case of motion alarm (without having to make settings at the router); info/images optionally also via e-mail/FTP

Scope of delivery:

•\t1x 2MPx WiFi PTZ Dome-Camera
•\t1x Power supply 12V DC / 1 A
•\t1x Network cable 1m
•\t1x Drilling template
•\t1x Mounting material

Datasheet - TVIP82561
