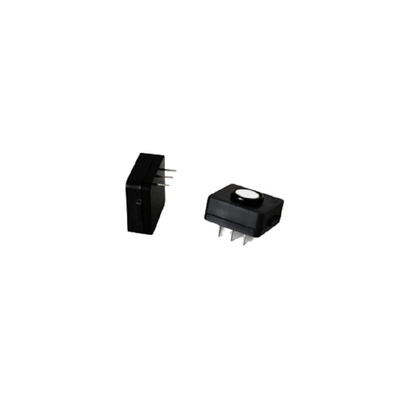

SGX Sensors PS1-CO-100, Carbon Monoxide Gas Sensor IC for Gas Leak Detector for Gas Appliances

The SGX Sensors series of PS1 and PS4 Electrochemical gas sensors are using a revolutionary ’Solid Polymer Electrolyte’ technology that is based on the principle of catalytic reaction. The target gas to be measured generates a very small current, proportional to the gas concentration. Our technology offers a stable, high quality and cost-effective manufacturing process. The SGX solid polymer electrolyte gas sensors are available in a very small size, are highly sensitive, do not use power and have very low cross sensitivity from other gases.

Sensitivity 25 ± 10 nA / ppm
Measurement range 0 – 100 ppm
Zero current ± 100 nA
Maximum overload 1000 ppm
Response time T50< 10s, T90 < 30s
Repeatability < 1%
Lower Detectable Limit (LDL) ≤ 2 ppm
Linear range 100 ppm
Resolution (16Bit ADC) <0.1ppm

Datasheet - PS1-CO-100
