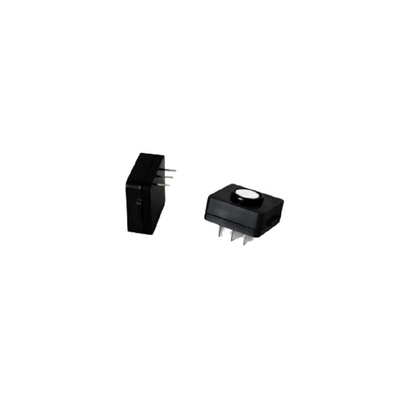

SGX Sensors PS1-H2S-100, Hydrogen Sulphide Gas Sensor IC for H2S Detectors

The SGX Sensors series of PS1 and PS4 Electrochemical gas sensors are using a revolutionary ’Solid Polymer Electrolyte’ technology that is based on the principle of catalytic reaction. The target gas to be measured generates a very small current, proportional to the gas concentration. Our technology offers a stable, high quality and cost-effective manufacturing process. The SGX solid polymer electrolyte gas sensors are available in a very small size, are highly sensitive, do not use power and have very low cross sensitivity from other gases.

Sensitivity 90 ± 20 n A / ppm
Measurement range 0 – 100 ppm
Zero current ± 20 nA
Maximum overload 200 ppm
Response time T50 < 10s, T90 < 30s
Repeatability 1%
Lower Detectable Limit (LDL) ≤ 1 ppm
Linear range 100 ppm
Resolution (16Bit ADC) 0.1ppm

Datasheet - PS1-H2S-100
