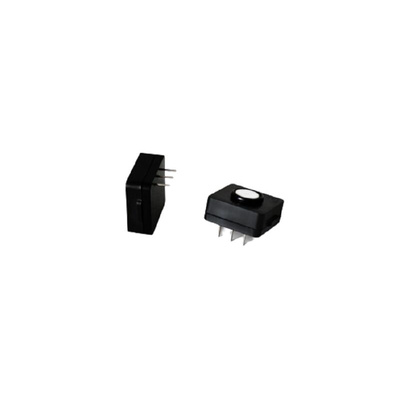

SGX Sensors PS1-O3-5, Ozone Gas Sensor IC for Gas Leak Detector for Gas Appliances

The SGX Sensors series of PS1 and PS4 Electrochemical gas sensors are using a revolutionary ’Solid Polymer Electrolyte’ technology that is based on the principle of catalytic reaction. The target gas to be measured generates a very small current, proportional to the gas concentration. Our technology offers a stable, high quality and cost-effective manufacturing process. The SGX solid polymer electrolyte gas sensors are available in a very small size, are highly sensitive, do not use power and have very low cross sensitivity from other gases.

Sensitivity 60 ±20 n A / ppm
Measurement range 0 – 5 ppm
Zero current:± 20 nA
Maximum overload 10 ppm
Response time T50 < 20s, T90 < 60s
Repeatability < 2%
Lower Detectable Limit (LDL) ≤ 0.05 ppm
Linear range 5 ppm

Datasheet - PS1-O3-5
