RS PRO Digital Handheld Digital Oscilloscope, 2 Analogue Channels, 200MHz, 0 Digital Channels

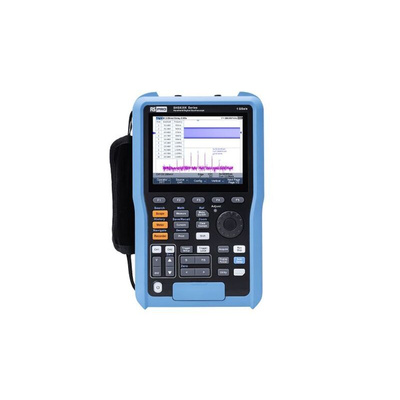

RS PRO Handheld Digital Oscilloscope

Introducing the range of RS PRO compact digital Oscilloscopes, an ideal space-saving and portable substitute for a benchtop oscilloscope. The high-performance range offers a wide bandwidth range with 2 channels and can easily be connected via USB connection to display the measurement results on a desktop PC or laptop. The user-friendly interface and the versatility of this range of handheld oscilloscopes make it an ideal choice for applications that may require more flexibility around where the measurements get taken.

Features and Benefits:

• This range of RS PRO handheld oscilloscopes is the perfect plug and play solution to applications where mobility and flexibility for measurement is required and combines an oscilloscope, multimeter, waveform recorder, measurement value recorder, protocol analysis and FFT spectrum analyser in one


• It has a compact, lightweight, and space-saving design to ensure ultimate portability, while still offering the performance of a digital benchtop oscilloscope, so the accuracy and quality of the measurement is never compromised


• Designed with a durable IP51 rated outer case, the oscilloscope has excellent dust and water resistance with a smart, professional appearance


• This oscilloscope offers more than 20 types of automatic measurement functions, as well as a true RMS multimeter (based on hardware implementation)


• The complete isolation of the oscilloscope makes it well-suited for both laboratory use and floating signal measurements, as it minimizes the possibility of unintended short circuits


• In addition to this, this convenient digital oscilloscope allows one computer or laptop to effortlessly connect with multiple oscilloscopes in the range, easily expanding the channel numbers


• Supplied with a USB cable, passive probe, multimeter test lead, mains cable, battery and convenient carry bag

Technical Features:

• Bandwidth: 200 MHz with 2 channels


• 1GSa/s real-time sampling rate


• 2mV-10V/DIV input sensitivity


• USB interface with no external power required – battery operating time 5.5 hours

Applications:

Digital oscilloscopes are sophisticated and versatile electronic instruments most often used in laboratories to capture, process, display, and analyse electronic signals' waveforms and bandwidth. Digital Storage Oscilloscope, or DSO’s, variants possess waveform storage capabilities that enable the retention and presentation of waveforms over specific time spans. Oscilloscopes are extensively used in applications across various industries and can be used for:

• Circuit measurement


• Wind power, PV power and other new energy equipment test


• Automotive electron, electric automobile test


• Electric power system, strong electricity test


• Industry scenes electric debug testing and measuring


• Education, science research and quality control

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards. They’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Contains SVHC - 1,3-propanesultone - CAS No. 1120-71-4
