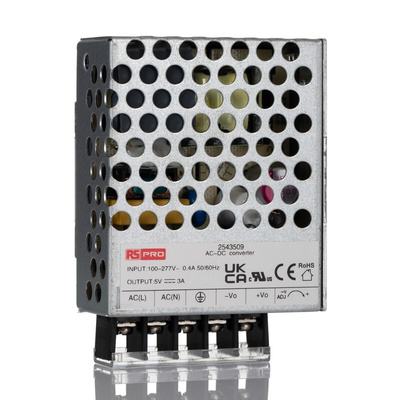

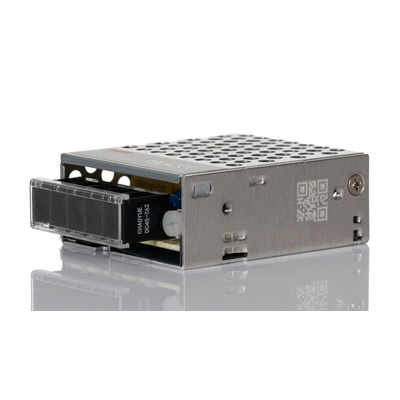

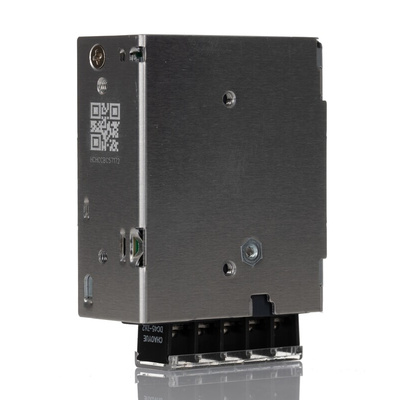

RS PRO AC-DC Power Supply, 5V dc, 3A, 15W, 1 Output, 100 → 430V dc Input Voltage

RS PRO Embedded AC-DC Switching Power Supplies- 15W

Are you looking for a reliable and cost-effective power supply that can be seamlessly integrated into your industrial or manufacturing applications? Look no further than the RS PRO range of embedded AC-DC switching power supplies! This reliable power supply features universal AC input, accepts DC input voltage, has low no-load power consumption, high efficiency and high reliability. Don’t settle for sub-part power supplies, get the best with RS PRO.

Why would you choose these power supplies?

These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, and GB4943 standards and are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

Features and Benefits

• Embedded power supply


• Compact


• Universal AC input and while accepting DC input voltage


• Over-voltage class Ⅲ


• Output short circuit, over-current, over-voltage protection


• Supplied with terminal cover

Specification

• Package Type: Enclosed


• Power Rating: 15 W


• Output: Single


• Efficiency: 83%


• Output Voltage Range: 5 Vdc to 48 V dc


• Output current of 320 mA to 3A


• Operating temperature range of -30˚C to +70˚C


• Weight of 90 g

Dimensions

• Length: 65 mm


• Width: 55 mm


• Depth: 25 mm

15W Variants Available Separately

• 5 V dc, RS stock no: 254-3509


• 12 V dc, RS stock no: 254-3510


• 15 Vdc, RS stock no: 254-3511


• 24 Vdc, RS stock no: 254-3512


• 48 Vdc, RS stock no: 254-3513

Applications

• Industrial control systems


• Instrumentation and lighting

RS PRO Datasheet
